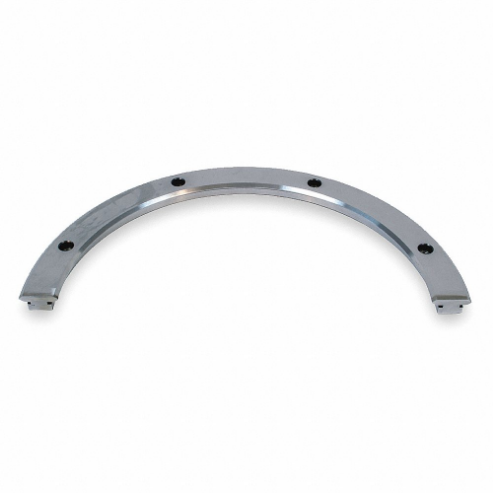

BISHOP-WISECARVER R44612180 Slide Ring 180 Degree 656.74 Mm Od
Get it by Tuesday, Jun 17
€2,494.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Slide Ring |
| Inside Dia. | 567.26 mm |
| Mounting Hole Size | 6.8 mm |
| Number Of Rail Holes | 8 |
| Outside Dia. | 656.74 mm |
| Rail Finish | Precision Ground |
| Rail Material | Steel |
| Screw Type | Socket Head Cap Screw |
| Temp. Range | -20°F to +60°F |
| Type | Full Ring |
| For Use With Carriage | 2NDL6 |
| Inside Diameter | 567.26 mm |
| Mounting Hole Center To Center | 612 mm |
| Number Of Mounting Holes | 16 |
| Outside Diameter | 656.74 mm |
| Rail Width | 26 mm |
| Ring Type | Half Ring |
| Thread Size | M6 |
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 1.55 |
| Ship length (cm) | 65.68 |
| Ship width (cm) | 65.68 |
| HS code | 8482992560 |
| Country of Origin | UK |
| Model | Inside Dia. | Mounting Hole Size | Outside Dia. | Thread Size | Price | |
|---|---|---|---|---|---|---|
| R1293180 | 80.63mm | 3.7mm | 105.37mm | M3 | €834.74 | |
| R12127180 | 114.63mm | 3.7mm | 139.37mm | M3 | €961.33 | |
| R25159180 | 133.26mm | 5.5mm | 184.74mm | M5 | €1,003.70 | |
| R25255180 | 229.26mm | 5.5mm | 280.74mm | M5 | €1,650.07 | |
| R25351180 | 325.26mm | 5.5mm | 367.74mm | M5 | €1,987.84 | |
| R44468180 | 423.26mm | 6.8mm | 512.74mm | M6 | €1,675.91 | |
| R76799180 | 722.26mm | 14mm | 875.74mm | M12 | €5,210.80 |
