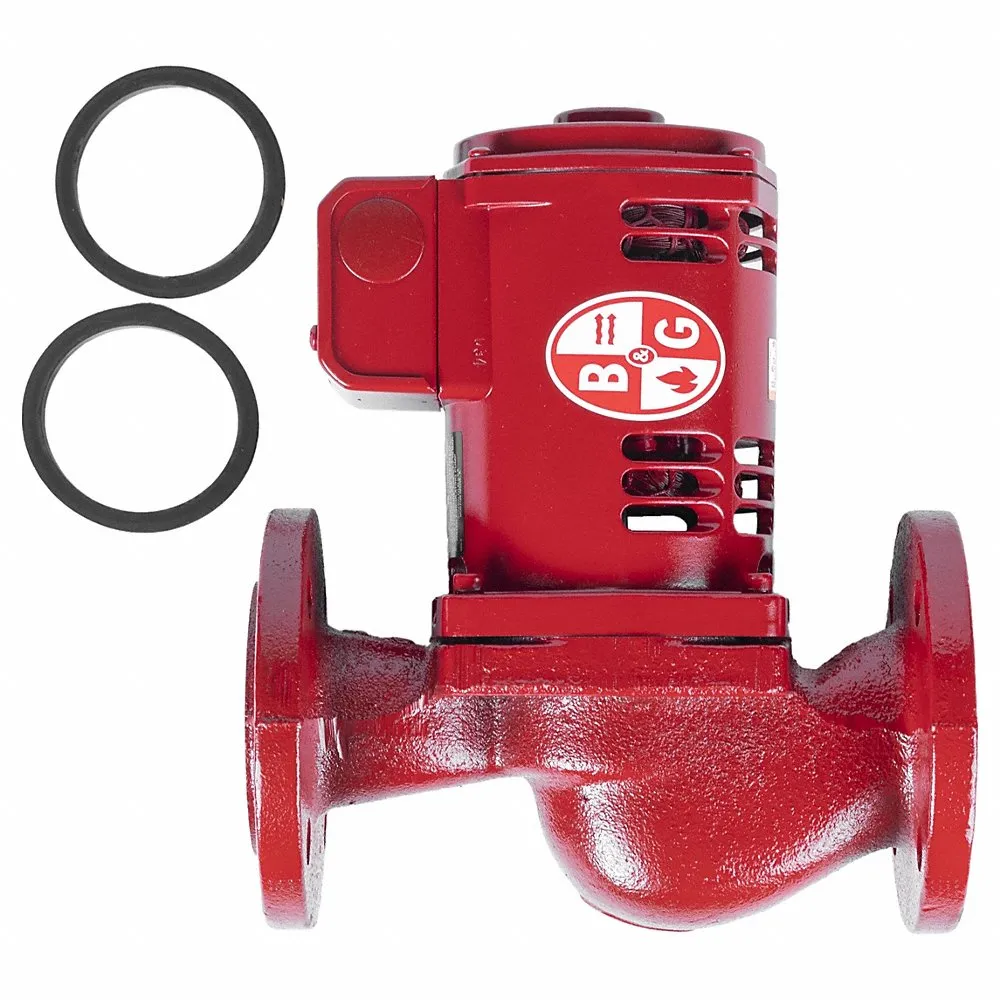

| Item | Pump |
| Body Gasket Material | Carbon |
| Compatible Discharge Pipe Size | 2" |
| Connection Type | FNPT |
| Electrical Connection Type | Hardwired |
| Enclosure Type | Open Dripproof |
| Face To Face Dimension | 8 1/2" |
| For Pipe Size | 2" |
| For Use With | Hydronic Systems |
| For Use With Potable Systems | No |
| Frequency | 60 Hz |
| Housing Material | Cast Iron |
| Hp | 1/6 hp |
| Impeller Material | Plastic |
| Max. Flow Rate @ 1 Ft. | 68 GPM |
| Max. Flow Rate @ 10 Ft. | 35 GPM |
| Max. Flow Rate @ 15 Ft. | 0 GPM |
| Max. Flow Rate @ 5 Ft. | 55 GPM |
| Max. Head | 15 ft. |
| Max. Media Temp. | 250°F |
| Max. Operating Pressure | 150 psi |
| Max. Rpm | 3400 RPM |
| Media Type | Water |
| Mounting Location | Inline |
| Mounting Position | Horizontal, Vertical |
| No. Of Flange Mounting Holes | 2 |
| No. Of Speeds | 1 |
| Overall Height | 8 1/2" |
| Overall Length | 9.94" |
| Overall Width | 4.63" |
| Pipe To Flange Or Union Connection Type | FNPT |
| Pump Type | Standard |
| Rotor Type | Wet |
| Self Priming | Yes |
| Series | PL Series |
| Voltage | 115V AC |
| Wetted Material | Carbon Steel, Silicon Carbide |
| Compatible Media Type | Water |
| Compatible Pipe Size | 2" |
| Horsepower | 1/6 hp |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Feet Of Head | 15 ft. |
| Maximum Flow Rate @ 1 Foot Of Head | 68 GPM |
| Maximum Flow Rate @ 10 Feet Of Head | 35 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 0 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 55 GPM |
| Maximum Media Temperature | 250°F |
| Maximum Operating Pressure | 150 psi |
| Maximum Rpm | 3400 RPM |
| Motor Enclosure Design | Open Drip Proof |
| Nameplate Voltage | 115V AC |
| Number Of Flange Mounting Holes | 2 |
| Number Of Speeds | 1 |
| Phase | Single |
| Phase And Brand | BELL & GOSSETT Single Phase |
| Priming | Self Priming |
| Pump Housing Material | Cast Iron |
| Series Family | PL |
| Standards | CSA CERTIFIED TO NSF/ANSI 372 |
| Ship weight (kg) | 9.82 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 25.25 |
| Ship width (cm) | 11.76 |
| Country of Origin | US |
