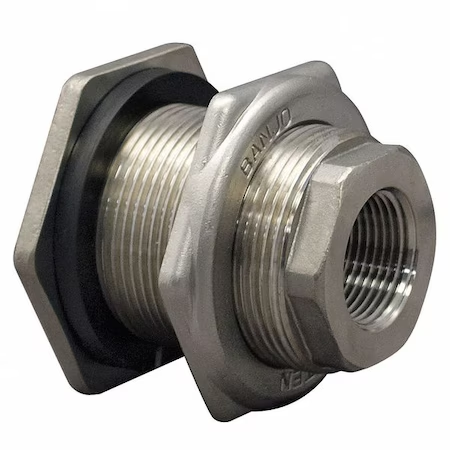

BANJO FITTINGS TF075SS Bulkhead Tank Fitting, 3/4 Inch Size, 1-5/8 Inch O.D.
Get it by Tuesday, Jun 17
€197.05 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Bulkhead Tank Fitting |
| Basic Pipe Fitting Material | Metal |
| Fitting Material Finish | Not Applicable |
| For Tank Shape | Curved, Flat |
| Gasket Material | EPDM |
| Inside Connection Gender | Female |
| Inside Connection Size | 3/4" |
| Length | 1.844" |
| Material | Stainless Steel |
| Max. Pressure | 150 psi |
| No. Of Bolt Holes | 0 |
| Outside Connection Gender | Female |
| Outside Connection Size | 3/4" |
| Pipe Size | 3/4" |
| Products By Industry | Transportation |
| Required Hole Size | 1 5/8" |
| Temp. Range | -20°F to +150°F |
| Thread Type | FNPT |
| Fitting Body Material | 316 Stainless Steel |
| Fitting Material | Stainless Steel |
| Fitting Material Grade | Grade 316 |
| Inside Connection | 3/4" FNPT |
| Inside Connection Type | NPT |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -20°F |
| Number Of Bolt Holes | 0 |
| Outside Connection | 3/4" Female NPT |
| Outside Connection Type | NPT |
| Overall Length | 1 7/8" |
| Temperature Range | -20°F to +150°F |
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 4.68 |
| Ship width (cm) | 4.32 |
| HS code | 7307290090 |
| Country of Origin | TW |
