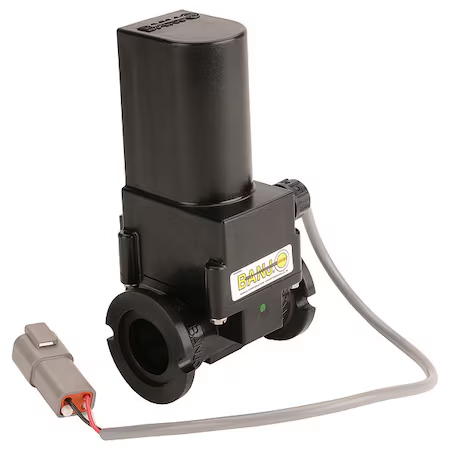

| Item | Ball Valve |
| Actuator Features | Position Indicator |
| Actuator Motor Type | Reversing |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Port Style | Standard Port |
| Body Seal Material | EPDM |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | Manifold Flange |
| Connection Type - Side 2 | Manifold Flange |
| Fail Safe Position | Fail Last |
| For Media | Corrosive Chemicals, Water |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 300 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Nominal Valve Size | 1" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1" |
| Special Features | Not Applicable |
| Valve Body Style | Straight |
| Voltage | 12V DC |
| 3-a Compliance | Not Rated |
| Actuator Cycle Time - 90° | 0.33 sec. |
| Actuator Duty Cycle | 100% |
| Actuator Operation | 90° |
| Ball Material | 316 Stainless Steel |
| Body Material | Glass-Filled Polypropylene |
| Connection Type - Side 1 | Manifold Flange |
| Max. Media Temperature | 150°F |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure Differential | 300 psi |
| Media Temp. Range | 0°F to 150°F |
| Min. Media Temperature | 0°F |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | Glass-Filled Polypropylene |
| Valve Construction | One-Piece |
| Valve Deactivated State | Normally Closed (NC) |
| Valve Ways | 2-Way |
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
