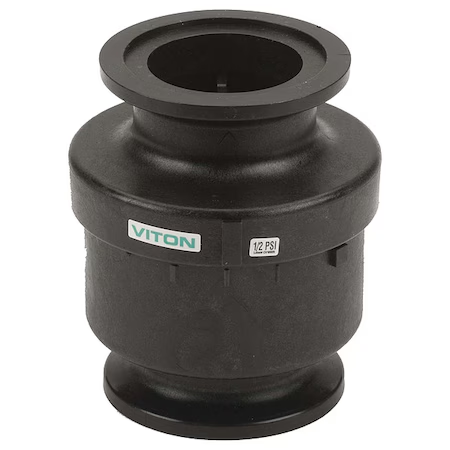

| Item | Flanged Check Valve |
| Size | 2" |
| Style | Check Valves |
| Type | Fittings |
| Valve Size | 2" |
| 3-a Compliance | Not Rated |
| Body Material | Glass-Filled Polypropylene |
| Check Mechanism | Poppet |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | Flange x Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Cracking Pressure | 0.5 psi |
| Flow Rate | 377 GPM |
| For Media | Water |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temp. Range | 0°F to 150°F |
| Mounting Orientation | Horizontal, Vertical |
| Nsf Certifications For Food And Drinking Water | Not Rated |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 0°F |
| Overall Length | 4.78" |
| Pipe Size | 2" |
| Poppet Material | 316 Stainless Steel |
| Seal Material | FKM |
| Silent Check | Standard |
| Spring Material | 316 Stainless Steel |
| Standards | None |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | Check Valve |
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
