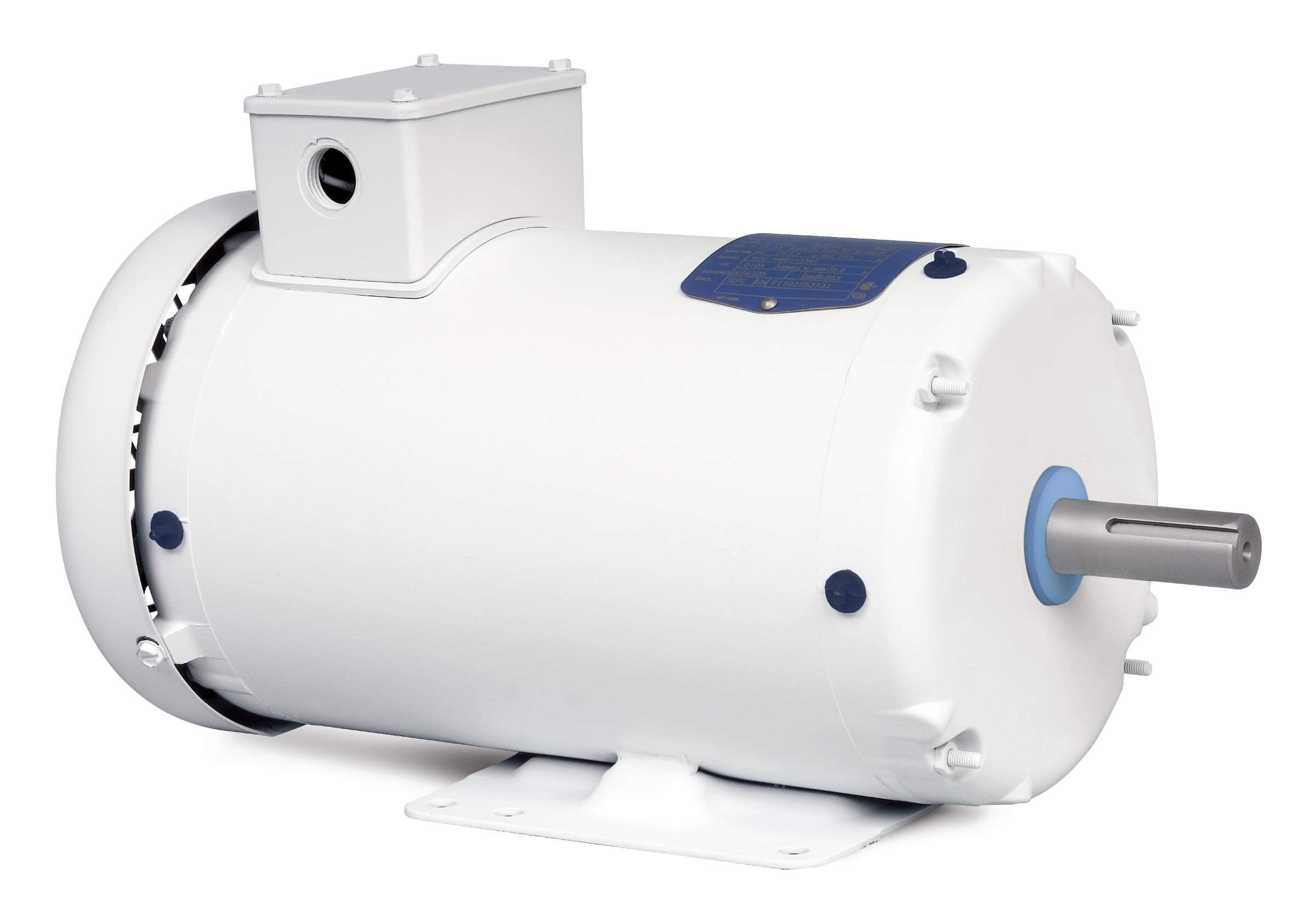

| Item | Washdown Motor |
| Base Type | Rigid Base |
| Bearing Type | Sealed |
| Color | White |
| Duty Cycle | Continuous |
| Finish | Epoxy Coated |
| Frame | 145T |
| Frame Material | Steel |
| Full Load Amps | 8A |
| Hp | 20 hp |
| Inverter Rated | No |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Design | Smooth With Key |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1640/1800 RPM |
| Overall Height | 8 3/4" |
| Overall Length | 15 1/25" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Height | 3 1/2" |
| Shaft Keyway Size | 0.19" x 0.19" |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
