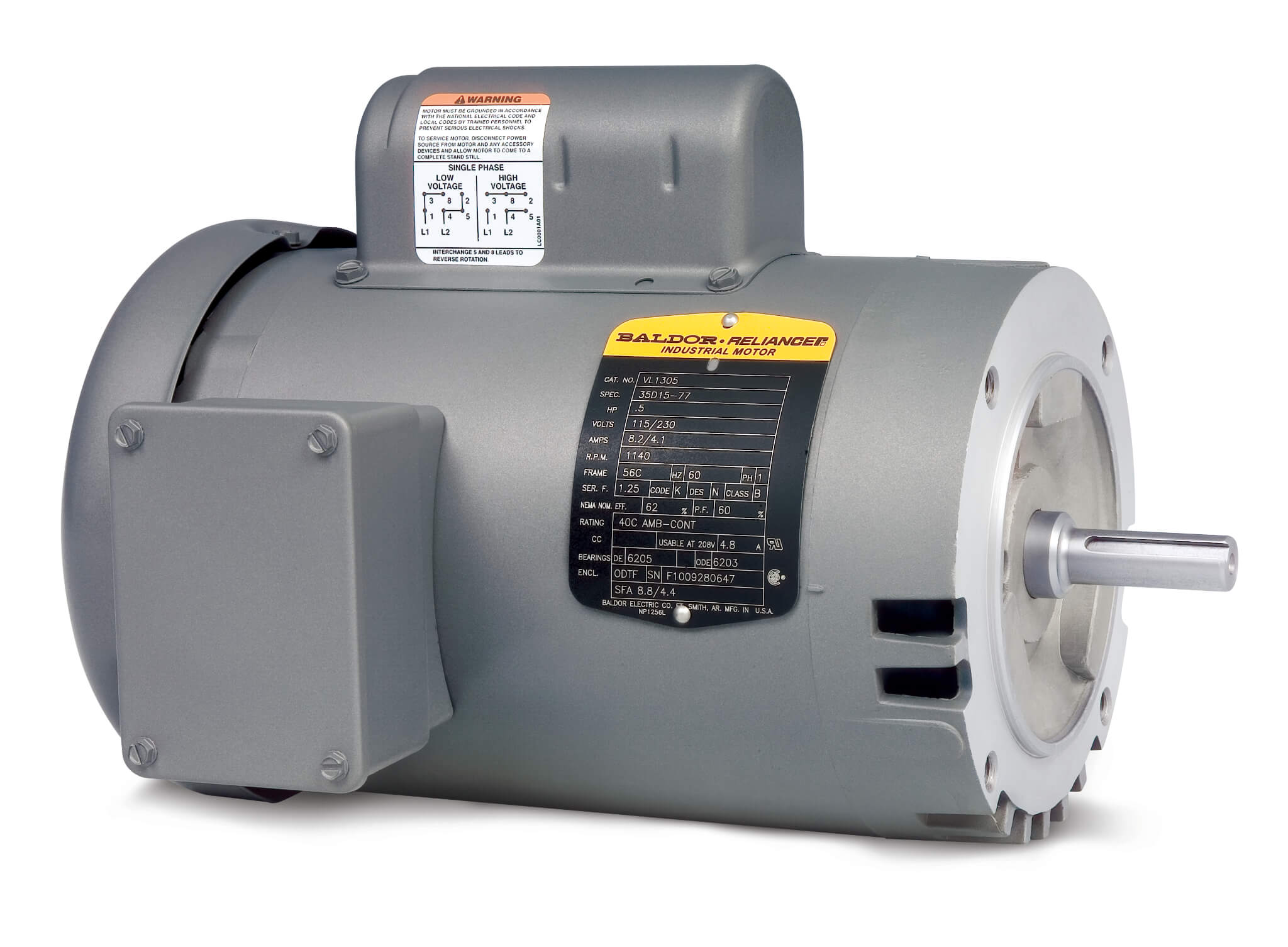

| Item | General Purpose Motor |
| Amps | 21/10.5 |
| Base | N |
| Break-down Torque | 16 LB-FT |
| Class | B |
| Enclosure | Open |
| Frame | 145TC |
| Full Load Torque | 4.5 LB-FT |
| HP | 1.5 |
| Hz | 60 |
| Insulation | B |
| Lead | 4#14 A PH,2#18 B PH |
| Mounting | F1 |
| No-load Current | 9.3 Amps |
| Number of Poles | 04 |
| Output | 1.5 |
| Phase | 1 |
| Power Factor | 64 |
| Revision | C |
| RPM | 1725 |
| Temp. Rise | 66 Deg C |
| Type | 3535L |
| Voltage | 115/230 |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
| Model | Power Factor | Motor Type | Amps | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KEL11203 | 89 | 3411LC | 2.6 A @ 115 V 1.9 A @ 208 V 1.3 A @ 230 V | - | 56C | 1.3 A | - | B | €665.39 | |
| KEL11205 | 97 | 3413LC | 3.0 A @ 115 V 1.6 A @ 208 V 1.5 A @ 230 V | - | 56C | 1.5 A | - | B | €735.36 | |
| KEL11205A | 97 | 3413LC | 3.0 A @ 115 V 1.6 A @ 208 V 1.5 A @ 230 V | - | 56C | 1.5 A | - | F | €777.60 | |
| KL1200 | 57 | - | 3.8/1.9 | Open | 56C | - | .17 | - | €508.80 | |
| VEL11308 | 99 | 3530LC | 6.2 A @ 115 V 3.1 A @ 230 V | - | 56C | 3.1 A | - | F | €1,447.68 | |
| VEL11309 | 99 | 3524LC | 7.8 A @ 115 V 5.5 A @ 208 V 3.9 A @ 230 V | - | 56C | 3.9 A | - | B | €945.60 | |
| VEL11313 | 99 | 3532LC | 11.8 A @ 115 V 7.8 A @ 208 V 5.9 A @ 230 V | - | 56C | 5.9 A | - | B | €1,285.92 |
