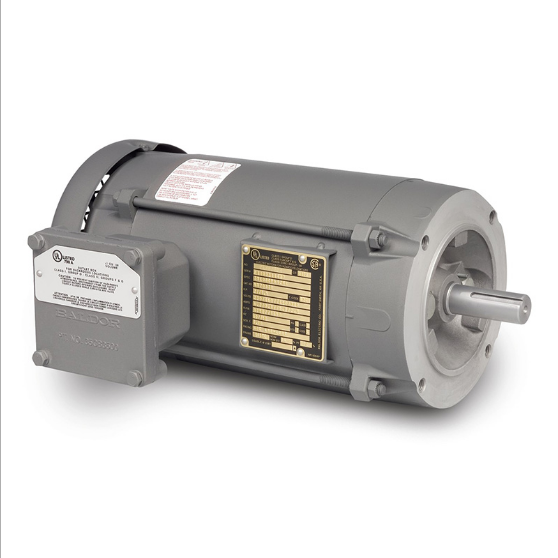

| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Amps | 7.9A @ 208V, 7.2A @ 230V, 3.6A @ 460V |
| Amps @ Volts | 7.9A @ 208V, 7.2A @ 230V, 3.6A @ 460V |
| Base Type | Not Applicable |
| Break-down Torque | 18 lbs.-ft. |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.6A |
| Grease Type | Polyrex EM |
| Hazardous Location Class | 1D |
| Hazardous Location Division | Division 1 |
| Hp | 3 hp |
| Insulation Class | Class B |
| Motor Type | Three Phase |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3450 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Output | 3 hp |
| Overall Length | 16 1/9" |
| Phase | 3 |
| Power Factor | 92 |
| Service Factor | 1 |
| Start Type | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Voltage | 230/460V AC |
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
