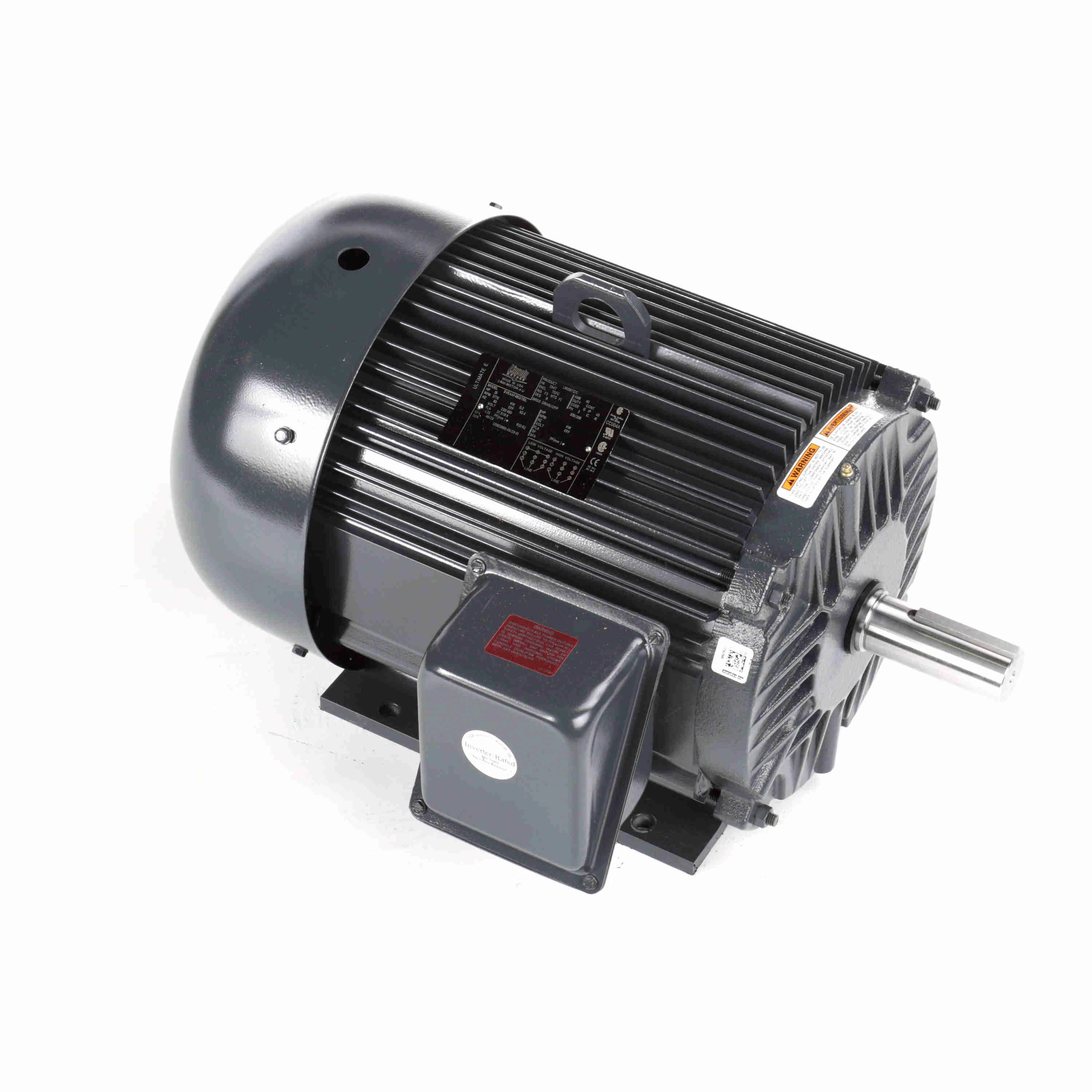

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Duty Cycle | Continuous |
| Frame | L184T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 6.1A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Three Phase |
| Mounting Type | C Face, Foot Mounted |
| Nameplate Rpm | 1750 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 23 4/7" |
| Phase | 3 |
| Service Factor | 1.15 |
| Start Type | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Voltage | 460V AC |
| Ship weight (kg) | 48.6 |
| Ship length (cm) | 59.87 |
| Country of Origin | US |
