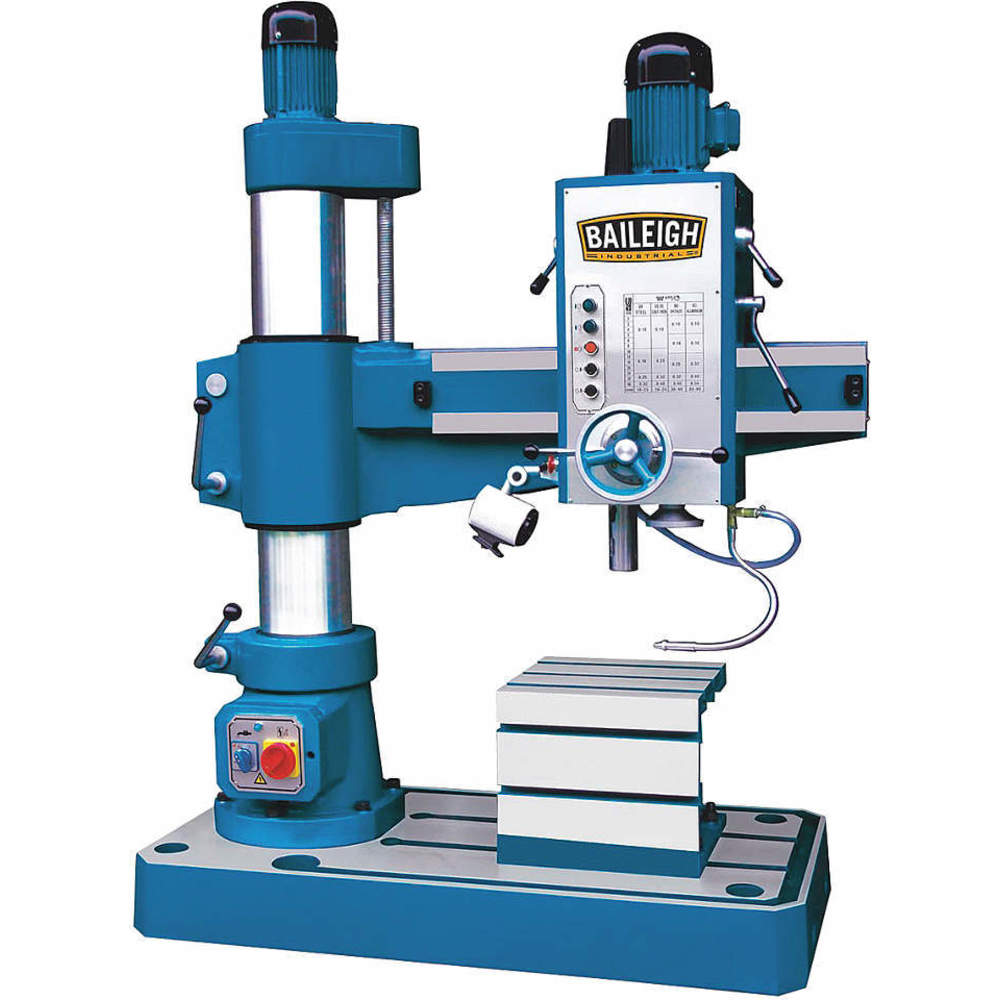

BAILEIGH INDUSTRIAL 1008487 RD-1000M Radial Floor Drill Press, 40 1/8 Inch Size, Geared Head, Variable, 220V AC
Due to weight and dimension restrictions, please request a shipping quote
€17,727.78 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Radial Floor Drill Press |
| Amps | 11.5A |
| Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Base Length | 29" |
| Base Width | 20" |
| Chuck Capacity | 5/8" |
| Chuck Size | 5/8" |
| Chuck Style | Machine Taper |
| Column Dia. | 9.438" |
| Coolant System | Yes |
| Drill Press Type | Floor Stand |
| Drilling Capacity In Cast Iron | 1 1/2" |
| Drilling Capacity In Steel | 1 1/2" |
| Drive Type | Geared Head |
| Guard Included | Yes |
| Hp | 4 hp |
| Includes | Industrial Coolant System, Quick Chuck, Shaped Work Table, Spindle Protection Cover, Tapping Chuck, Work Light |
| Max. Overall Height | 93" |
| Max. Spindle Speed | 1800 RPM |
| Maximum Spindle To Base Height | 41.812" |
| Maximum Spindle To Table Height | 41.812" |
| Min. Spindle Speed | 71 RPM |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Phase | 3 |
| Power Downfeed Included | Yes |
| Power Source | Corded |
| Primary Material Application | Metal |
| Radial Arm | Yes |
| Radial Arm Length | 40 1/8" |
| Speed Control | Variable |
| Speed Control Type | Gear Head |
| Spindle Taper | 4MT |
| Spindle To Column Distance | 7 3/4" to 39 1/4" |
| Spindle Travel | 9.812" |
| Table Length | 15 3/4" |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Width | 17 3/4" |
| Tapping Compatible | Yes |
| Tool Weight | 9460 lbs. |
| Voltage | 220V AC |
| Column Diameter | 9 7/16" |
| Current | 11.5A |
| Drill Press Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Horsepower | 4 hp |
| Maximum Overall Height | 93" |
| Maximum Spindle Speed | 1800 RPM |
| Maximum Spindle-to-base Height | 41 13/16" |
| Maximum Spindle-to-table Height | 41 13/16" |
| Minimum Spindle Speed | 71 RPM |
| Number Of Pieces | 7 |
| Power Down Feed Included | Yes |
| Spindle-to-column Distance | 7 3/4" to 39 1/4" |
| Ship weight (kg) | 1683 |
| Ship height (cm) | 220.98 |
| Ship length (cm) | 187.96 |
| Ship width (cm) | 99.06 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
1008486 | €29,303.99 |
