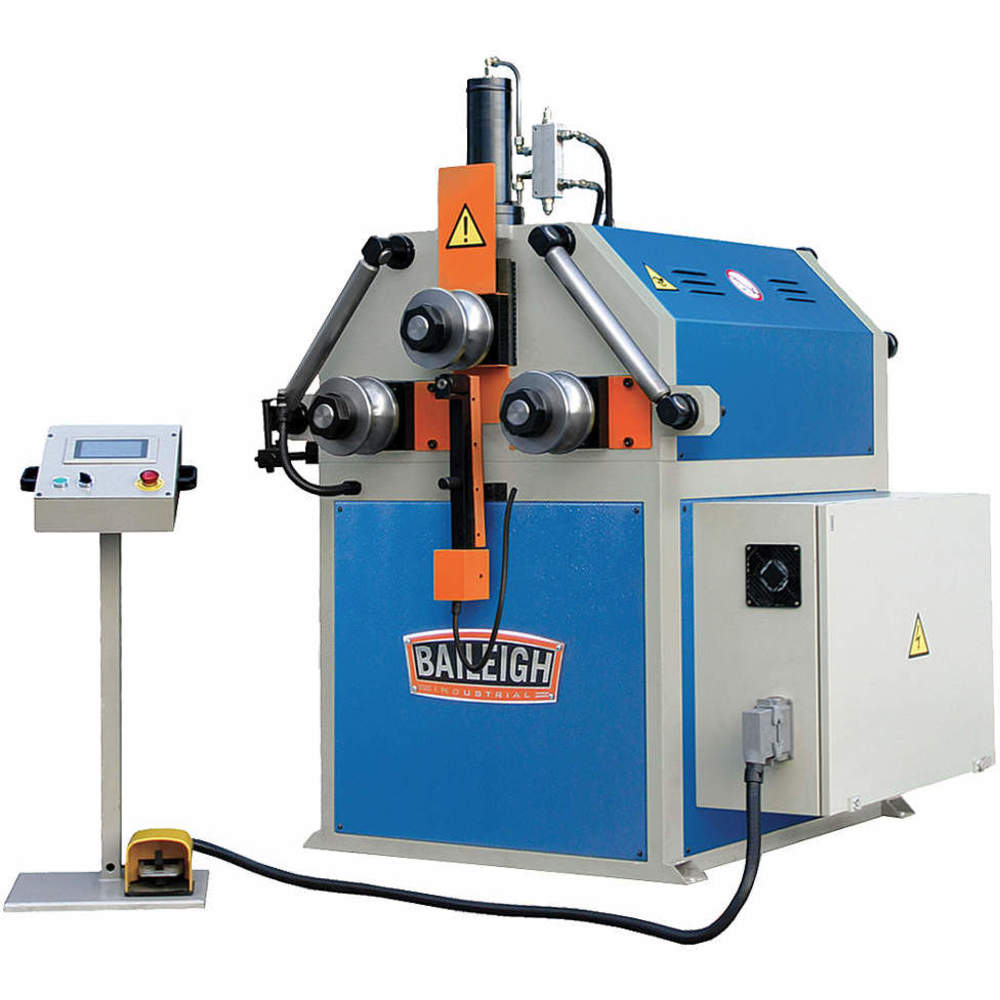

BAILEIGH INDUSTRIAL R-CNC55 Metal Bender, 2 3/4 Inch Max. Tube Dia, 360 Deg Max. Bending Angle, 52 Inch Overall Length
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Metal Bender |
| Application | For Roll Bending |
| Features | 3 Driven Rolls, All Hydraulically Adjustable: 1 Top Roll And 2 Bottom Rolls With Side-To-Side Adjustment For Less Waste., Baileigh Covers This Roll Bender With A 1-Year Parts Warranty And Lifetime Technical Support By Phone., Bend Capacity Of Upto 2.5" Schedule 40 Pipe., Handheld Digital Measuring Controls Can Quickly Set Any Of 75 Different Profile Calibrations., Internal Memory Holds 40 Programs Of 24 Different Parts Or Segments Per Program., Lateral Angle Guide Rolls Increase Efficiency By Correcting Bend Angles And Avoiding Twisted Material., Rigid, Electro-Welded Steel Plate Structure Minimizes Flex And Maintains Accuracy, Even At Full Capacity., Runs On 220-Volt 3-Phase Power., Touchscreen Operator Pedestal Comes Loaded With Easy-To-Use Software, Designed For CNC Roll Bending Applications., Variable Roll Speeds-4 Speeds On Top Roll, 2 Speeds On Bottom Rolls-Provide Smooth Transitions Between Parts., You Can Tilt The Machine Onto Its Back And Operate It In Horizontal Mode To Bend Long, Complex Segments |
| Material | Metal |
| Max. Bending Angle | 360° |
| Max. Tube Dia. | 2 3/4" |
| Overall Length | 52" |
| Ship weight (kg) | 694.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
1006760 | €53,066.70 | |
 |
RDB350220TS | €26,116.19 | RFQ
|
 |
1006758 | €131,325.48 | RFQ
|
