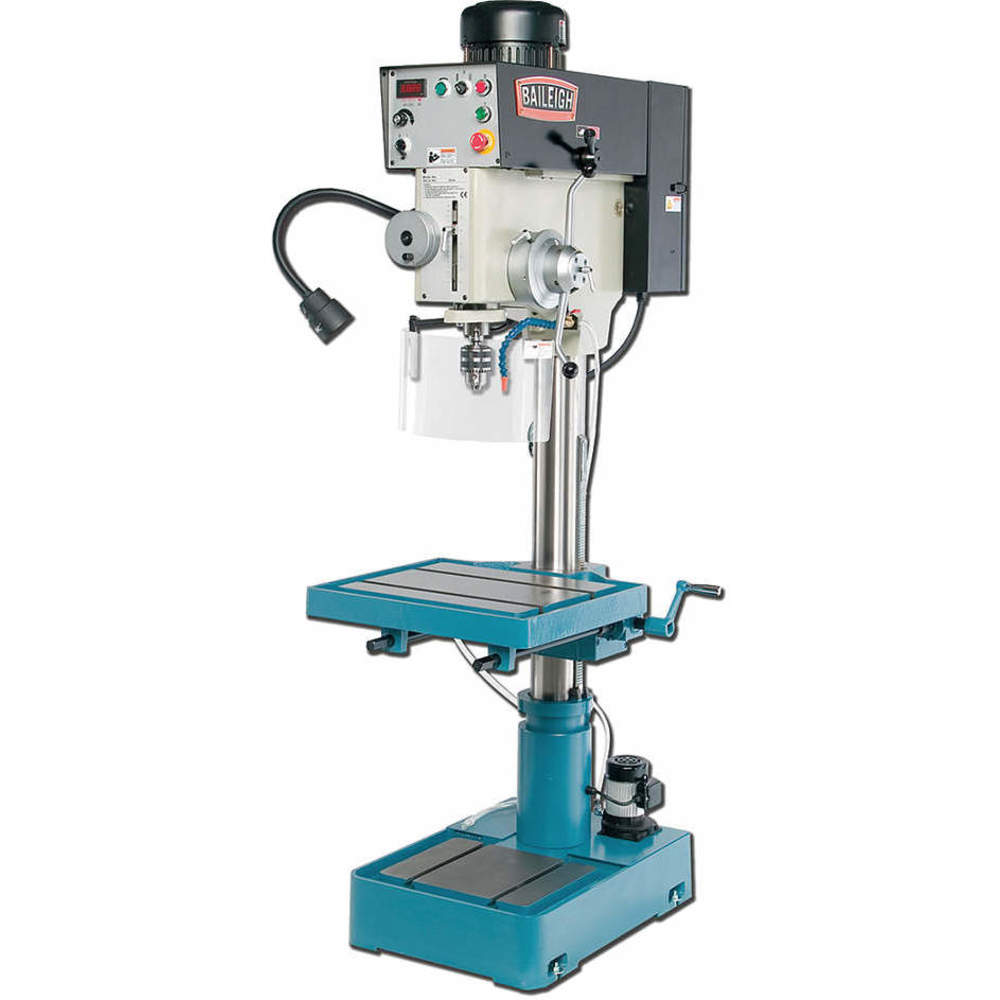

BAILEIGH INDUSTRIAL 1002923 DP-1500VS Floor Drill Press, Belt, Variable, 85 RPM 2000 RPM, 230 VAC /SinglePhase
Due to weight and dimension restrictions, please request a shipping quote
€7,177.49 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Floor Drill Press |
| Amps | 14A |
| Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Base Length | 27" |
| Base Width | 19" |
| Chuck Capacity | 3/4" |
| Chuck Size | 5/8" |
| Chuck Style | Machine Taper |
| Column Dia. | 4 1/2" |
| Coolant System | Yes |
| Drill Press Type | Floor Stand |
| Drilling Capacity In Cast Iron | 1 1/2" |
| Drilling Capacity In Steel | 1 1/2" |
| Drive Type | Belt |
| Guard Included | Yes |
| Hp | 2 hp |
| Includes | Halogen Light |
| Max. Overall Height | 83" |
| Max. Spindle Speed | 2000 RPM |
| Maximum Spindle To Base Height | 40 3/4" |
| Maximum Spindle To Table Height | 22 3/4" |
| Min. Spindle Speed | 85 RPM |
| Motor Voltage | 230V AC |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Phase | 1 |
| Power Downfeed Included | Yes |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Dia. | 2.953" |
| Radial Arm | No |
| Reversible | Yes |
| Speed Control | Variable |
| Speed Control Type | AC"Verter |
| Spindle Speed | 85-540/540-4000 RPM |
| Spindle Speed Range | 85-2000 RPM |
| Spindle Taper | 4MT |
| Spindle To Column Distance | 10.438" |
| Spindle Travel | 5.906" |
| Swing | 20 7/8" |
| Table Length | 22" |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Width | 18 1/2" |
| Tapping Capacity In Steel | 0.938" |
| Tapping Compatible | Yes |
| Tool Weight | 990 lbs. |
| Voltage | 220V AC |
| Column Diameter | 4 1/2" |
| Current | 14A |
| Drill Press Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Horsepower | 2 hp |
| Maximum Overall Height | 83" |
| Maximum Spindle Speed | 2000 RPM |
| Maximum Spindle-to-base Height | 40 3/4" |
| Maximum Spindle-to-table Height | 22 3/4" |
| Minimum Spindle Speed | 85 RPM |
| Number Of Pieces | 2 |
| Power Down Feed Included | Yes |
| Quill Diameter | 2 61/64" |
| Spindle-to-column Distance | 10 7/16" |
| Ship weight (kg) | 373.5 |
| Ship height (cm) | 223.52 |
| Ship length (cm) | 152.4 |
| Ship width (cm) | 111.76 |
| Country of Origin | TW |
