AUTONICS
AUTONICS A16K-M569 Stepper Motor 5-phase 23 Fr Shaft Type 1.4a | AE6AZM 5PFD5

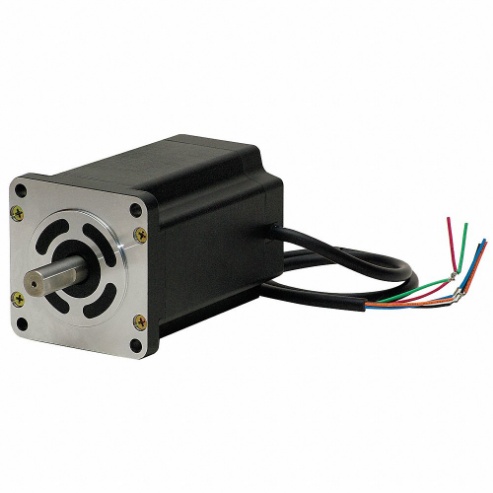

AUTONICS A16K-M569 Stepper Motor 5-phase 23 Fr Shaft Type 1.4a

In Stock
Item: AE6AZM Model: A16K-M569Cross Ref: 5PFD5
Check Availability
See variants (3)

Get it by May 27, Monday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€156.78 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemStepper Motor
Amps Per Phase1.4
Frame SizeNEMA 24 / 60 mm
Height1 11/16"
MountingFace
Mounting Pattern50 x 50mm
Overall Length3.5"
Phase5
RequiresDriver 5PFF4 or 5PFF5, Controller 5PFF8 or 5PFF9, Cable 5PFG0 or 5PFG1
Resolution0.72 deg Full Step
Rotor Inertia560.0 g-cm2
Shaft Dia.8mm
Shaft Length22.5mm
Shaft TypeSolid Shaft
Width1 11/16"

Shipping Info:

Ship weight (kg) 1.47
Ship height (cm)9.91
Ship length (cm)19.05
Ship width (cm)8.89
HS code8501104040
Country of OriginKR

Product Details:

  • Max. Holding Torque (1.63 N-m / 230.53 oz-in)
  • Winding Resistance (1.80 ohms)

Product Variants

ProductModelFrame SizeHeightOverall LengthRequiresShaft Dia.Shaft LengthWidthPrice
AUTONICS A16K-G569 Stepper Motor 5-phase 23 Fr Shaft Type 2.8a | AE6AZN 5PFD6 A16K-G569NEMA 24 / 60 mm1 11/16"3.5"Driver 5PFF6, Controller 5PFF8 or 5PFF9, Cable 5PFG0 or 5PFG18mm22.5mm1 11/16"€560.54
AUTONICS A63K-M5913 Stepper Motor 5-phase 34 Fr Shaft Type 1.4a | AE6AZW 5PFE3 A63K-M5913NEMA 34 / 85 mm2.375"5 1/16"Driver 5PFF4 or 5PFF5, Controller 5PFF8 or 5PFF9, Cable 5PFG0 or 5PFG114mm35mm2.38"€1,269.62
AUTONICS A63K-G5913 Stepper Motor 5-phase 34 Fr Shaft Type 2.8a | AE6AZX 5PFE4 A63K-G5913NEMA 34 / 85 mm2.375"5 1/16"Driver 5PFF6, Controller 5PFF8 or 5PFF9, Cable 5PFG0 or 5PFG114mm35mm2.38"€1,406.78
