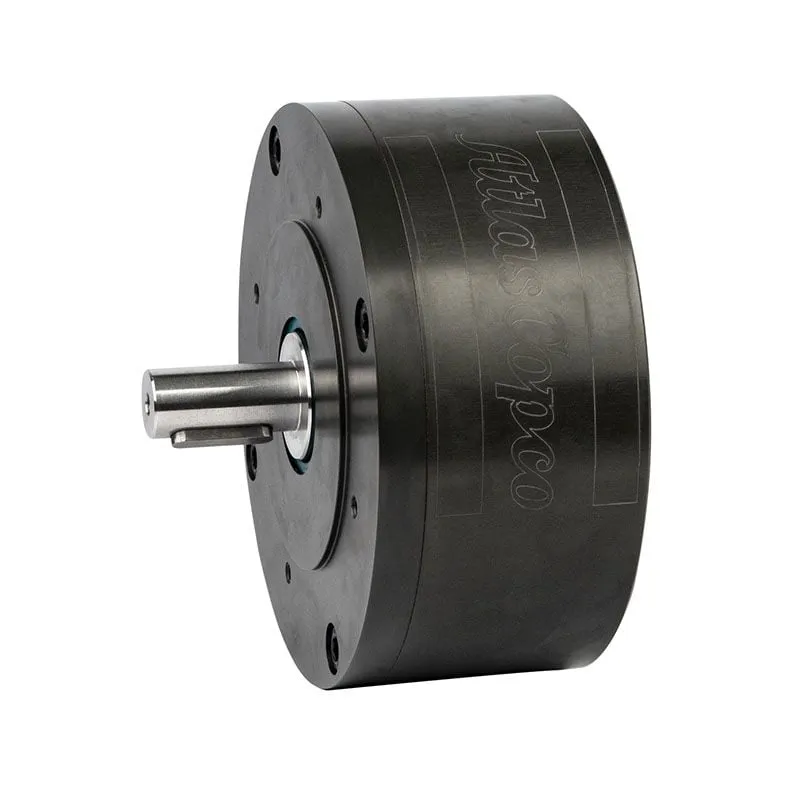

| Item | Piston Air Motor |
| Air Consumption At Max Output | 9.2 CFM |
| Atex | Yes |
| Atex Code Dust | EX II 2 D EX H IIIC T85°C DB |
| Atex Code Gas | EX II 2 G EX H IIC T6 GB |
| Atex Max Temperature | 85°C |
| External Parts Finish | Hardened |
| External Parts Material | Aluminum, Steel |
| Ingress Protection Rating | IP65 |
| Inlet Hose Size | 1/4" |
| Max Ambient Temperature | 40°C |
| Max Output | 0.16 hp |
| Max Working Pressure | 100 psig |
| Maximum Allowed Speed | 300 RPM |
| Min Starting Torque | 5.9 lbs.-ft. |
| Outlet Hose Size | 1/4" |
| Rotation Direction | Reversible |
| Shaft Type | Keyed |
| Speed At Max Output | 500 RPM |
| Stall Torque | 5.9 lbs.-ft. |
| Torque At Max Output | 2.8 lbs.-ft. |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 23.01 |
| Ship length (cm) | 24.99 |
| Ship width (cm) | 16 |
| Country of Origin | HU |
