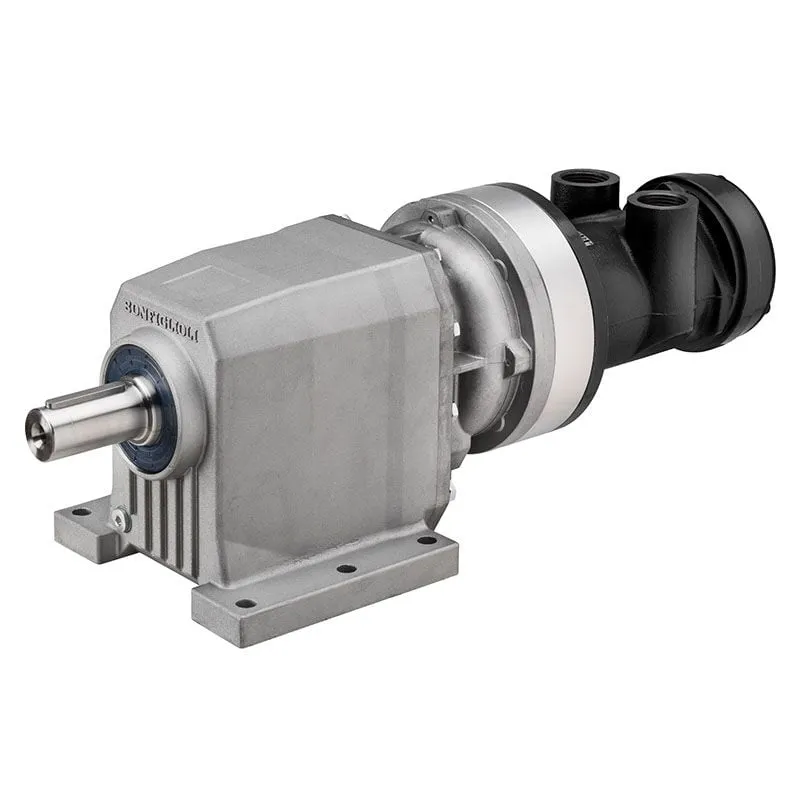

| Item | Vane Air Motor |
| Air Consumption At Max Output | 183 CFM |
| Atex | No |
| Built In Brake | No |
| External Parts Finish | Powder Coated |
| External Parts Material | Aluminum, Cast Iron |
| Free Speed | 52 RPM |
| Max Output | 4.3 hp |
| Max Radial Load At Max Output | 16000N |
| Min Starting Torque | 1403 lbs.-ft. |
| Mounting Arrangement | Flange |
| Ratio | 113.6 |
| Rotation Direction | Reversible |
| Shaft Type | Keyed |
| Speed At Max Output | 25 RPM |
| Stall Torque | 1801 lbs.-ft. |
| Torque At Max Output | 901 lbs.-ft. |
| Vane Type | Standard |
| Ship weight (kg) | 84.33 |
| Ship height (cm) | 40.01 |
| Ship length (cm) | 67.01 |
| Ship width (cm) | 30 |
| Country of Origin | HU |
