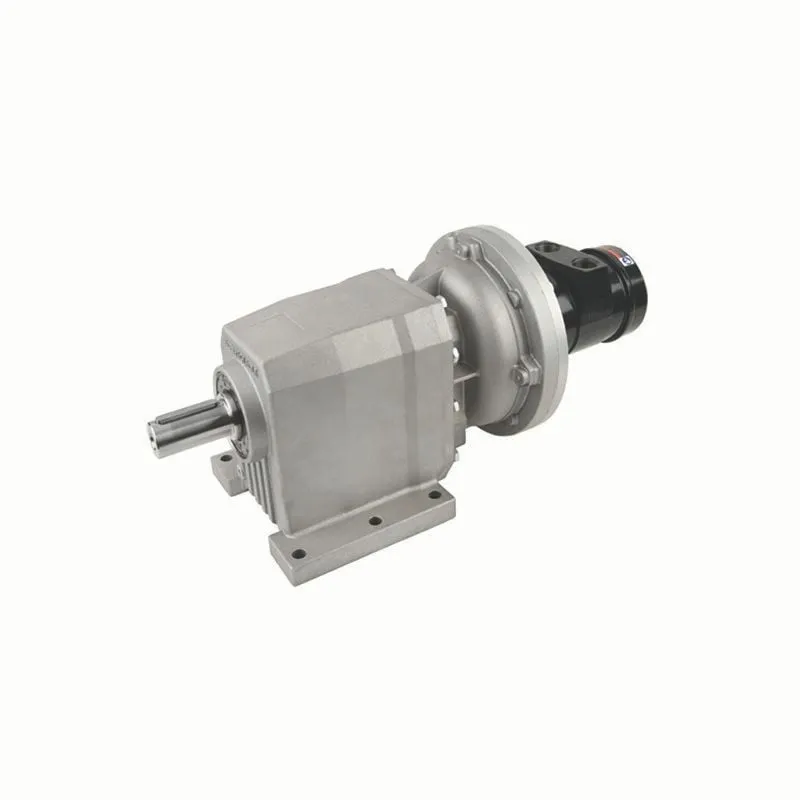

| Item | Vane Air Motor |
| Air Consumption At Max Output | 77 CFM |
| Atex | No |
| Built In Brake | No |
| External Parts Finish | Powder Coated |
| External Parts Material | Aluminum, Cast Iron |
| Free Speed | 500 RPM |
| Max Output | 1.7 hp |
| Max Radial Load At Max Output | 2770N |
| Min Starting Torque | 61 lbs.-ft. |
| Mounting Arrangement | Flange |
| Ratio | 18.2 |
| Rotation Direction | Reversible |
| Shaft Type | Keyed |
| Speed At Max Output | 238 RPM |
| Stall Torque | 72 lbs.-ft. |
| Torque At Max Output | 36 lbs.-ft. |
| Vane Type | Standard |
| Ship weight (kg) | 16.01 |
| Ship height (cm) | 24.99 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 24.99 |
| Country of Origin | HU |
