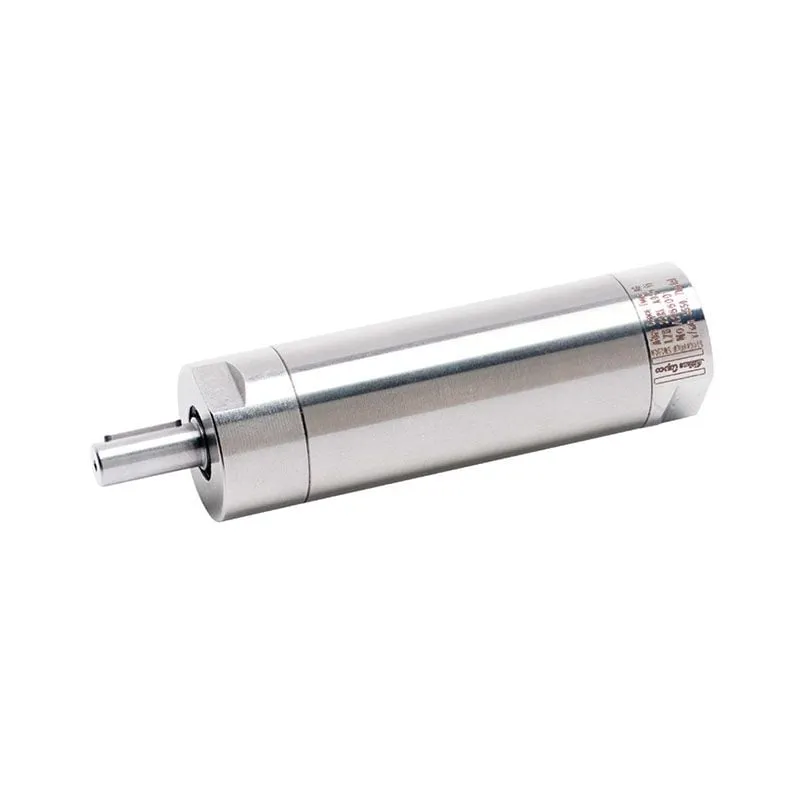

| Item | Vane Air Motor |
| Air Consumption At Max Output | 11.2 CFM |
| Atex | Yes |
| Atex Code Dust | EX II 2 D EX H IIIC T110°C DB |
| Atex Code Gas | EX II 2 G EX H IIC T4 GB |
| Atex Max Temperature | 110°C |
| Built In Brake | No |
| External Parts Material | Stainless Steel |
| Free Speed | 21500 RPM |
| Ingress Protection Rating | IP66, IP68, IP69 |
| Inlet Hose Size | 0.3" |
| Max Ambient Temperature | 40°C |
| Max Output | 0.36 hp |
| Max Working Pressure | 101 psig |
| Min Starting Torque | 0.38 lbs.-ft. |
| Outlet Hose Size | 0.4" |
| Rotation Direction | Clockwise |
| Shaft Loading Code | B |
| Shaft Type | Keyed |
| Speed At Max Output | 9600 RPM |
| Stall Torque | 0.4 lbs.-ft. |
| Torque At Max Output | 0.2 lbs.-ft. |
| Vane Type | Lubrication Free |
| Ship weight (kg) | 1 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 34.49 |
| Ship width (cm) | 8 |
| Country of Origin | HU |
