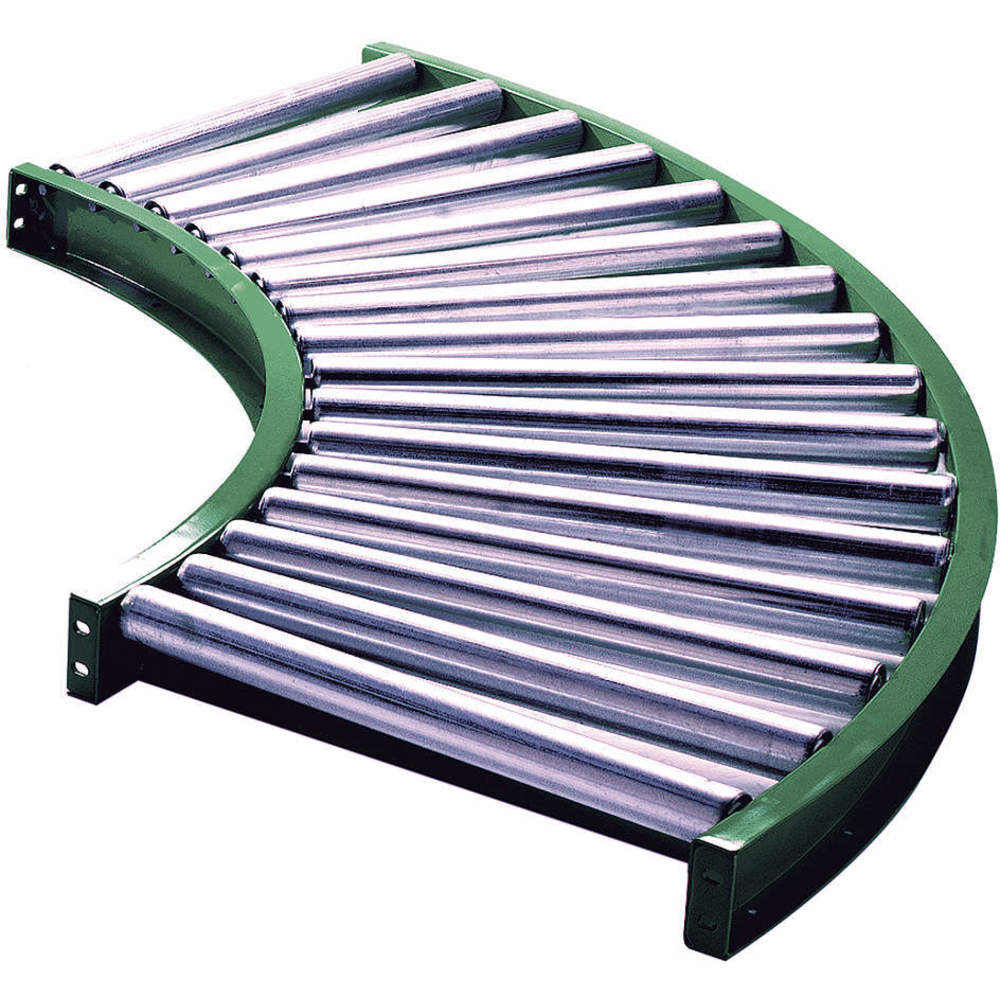

ASHLAND CONVEYOR 10F90KG03B27 Roller Conveyor 90 Degree Curve Bf 27 In
Due to weight and dimension restrictions, please request a shipping quote
€951.65 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Roller Conveyor |
| Bearing Type | Ball Bearing |
| Bed Material | Steel |
| Between Frame Size | 27" |
| Between Frame Width | 27" |
| Center To Center Roller Spacing | 3" |
| Color | Green |
| Design | Bolted |
| Finish | Galvanized , Powder Coated |
| Frame Type | Rigid |
| Inside Radius | 30" |
| Material | Steel |
| Material Thickness | 16 ga. |
| Number Of Rollers | 16 |
| Outside Radius | 58 3/8" |
| Overall Width | 29 3/4" |
| Roller Bearing Type | Ball Bearing |
| Roller Capacity | 270 lbs. |
| Roller Dia. | 1.9" |
| Roller Material | Steel |
| Roller Set Positioning | Set High |
| Roller Spacing | 3" |
| Rollers For Curved Section | 16 |
| Section Description | 90° Curved |
| Conveyor Connection Type | Bolt On |
| Conveyor Frame Type | Rigid |
| Conveyor Roller Material | Steel |
| Frame Finish/coating | Powder Coated |
| Frame Height - Conveyors | 1 3/8" |
| Frame Material | Steel |
| Frame Shape | 90° Curved |
| Load Capacity @ 10 Ft. Centers | 120 lbs./ft. |
| Load Capacity @ 5 Ft. Centers | 600 lbs./ft. |
| Maximum Load Capacity | 600 lbs./ft. |
| Roller Gauge | 16 ga. |
| Ship weight (kg) | 58.95 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 218.44 |
| Ship width (cm) | 88.9 |
| HS code | 8428390000 |
| Country of Origin | US |
| Model | Bearings | Between Frame (in.) | Design | Frame Finish | Frame Material | Overall Length | Overall Width | Roller Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11F05EG15B10 | Ball Bearing | 10 | Bolted | - | 12 Gauge Galvanized Steel | 5ft. | 12" | 1-3/8" | €392.74 | RFQ
|
| 11F05EG15B16 | Ball Bearing | 16 | Bolted | - | 12 Gauge Galvanized Steel | 5ft. | 18" | 1-3/8" | €458.74 | RFQ
|
| 11F05EG15B22 | Ball Bearing | 22 | Bolted | - | 12 Gauge Galvanized Steel | 5ft. | 24" | 1-3/8" | €533.41 | RFQ
|
| 11F10EG03B10 | Ball Bearing | 10 | Bolted | - | 12 Gauge Galvanized Steel | 10ft. | 12" | 1-3/8" | €498.87 | |
| 11F10EG03B16 | Ball Bearing | 16 | Bolted | - | 12 Gauge Galvanized Steel | 10ft. | 18" | 1-3/8" | €525.38 | |
| 11F10EG03B22 | Ball Bearing | 22 | Bolted | - | 12 Gauge Galvanized Steel | 10ft. | 24" | 1-3/8" | €654.74 | |
| 11F05EG03B10 | Ball Bearing | 10 | Bolted | - | 12 Gauge Galvanized Steel | 5ft. | 12" | 1-3/8" | €280.67 | RFQ
|
