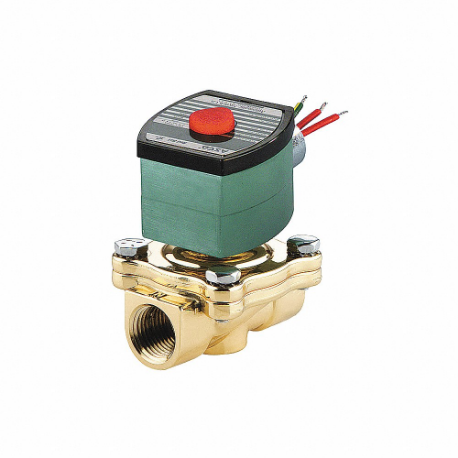

| Item | Solenoid Valve |
| Application | Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps |
| Body Material | Brass |
| Center Line Pipe Center Size | 4.797" |
| Coefficient Of Volume | 22.5 |
| Coil Enclosure | Molded |
| Coil Insulation Class | F |
| Compliance | CSA, UL |
| Environmental Rating | Indoor, Outdoor |
| For Media | Air, Inert Gases, Light Oil, Water |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Lead Length | 16" |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | 135 psi |
| Max. Operating Pressure Differential Light Oil | 120 psi |
| Max. Operating Pressure Differential Water | 120 psi |
| Min. Operating Pressure Differential | 0 psi |
| Min. Operating Pressure Differential Steam | Not Applicable |
| Mounting Orientation | Vertical |
| Operating Pressure Differential Fuel Gas - Maximum | Not Applicable |
| Operating Pressure Differential Fuel Gas - Minimum | Not Applicable |
| Operating Pressure Differential Fuel Oil - Maximum | Not Applicable |
| Operating Pressure Differential Fuel Oil - Minimum | Not Applicable |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1 1/4" |
| Overall Height | 5.922" |
| Overall Length | 3.891" |
| Overall Width | 4.516" |
| Pipe Size | 1 1/2" |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Ways And Positions | 2-Way/2-Position |
| Voltage | 24V DC |
| Wattage | 30.8 W |
| Coefficient Of Volume (cv) | 22.5 |
| Electrical Connections | 1/2" Conduit Hub |
| Inlet Connection Type | NPTF |
| Ip Rating | IP65 |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temperature | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 135 psi |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 125 psi |
| Min. Ambient Temperature | 14°F |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1 1/2" |
| Operating Environment | Indoor, Outdoor |
| Orifice Diameter | 1 1/4" |
| Outlet Connection Type | NPTF |
| Response Time | 1 sec. |
| Standards | UL LISTED |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 15.08 |
| Ship length (cm) | 9.92 |
| Ship width (cm) | 11.51 |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
 |
8320R186 100-240 | €264.35 | |
|
8320R172 100-240 | €258.59 | |
|
8320R184 100-240 | €258.59 | |
 |
8210G004LF 12/DC | €454.86 | |
|
8210G004LF 240/60, 220/50 | €454.86 | |
|
8210G004LF 24/DC | €454.86 | |
 |
8210G094LF 120/50, 110/60 | €257.98 |
