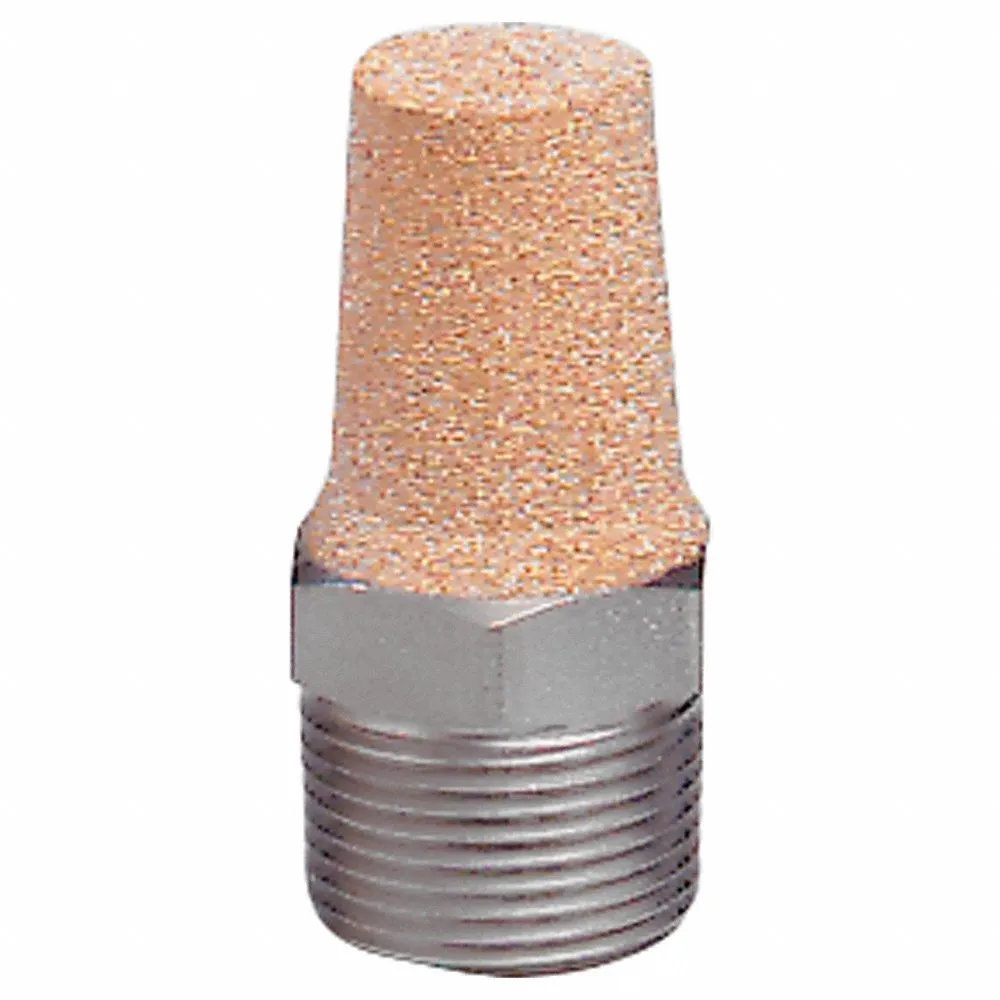

ARROW PNEUMATICS ASP-12 Muffler/Filter, 1-1/2 NPT
€15.36 /unit
Request a Quote
Payment
Payment
| Item | Exhaust Muffler |
| Air Inlet Size | 1 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1 1/2" |
| Air Outlet Type | NPT |
| Body Material | Steel |
| Filter Element Material | Bronze |
| Filter Rating | 40 ?m |
| Fitting Material | Steel |
| For Fluid Type | Compressed Air, Exhaust Air, Inert Gas |
| Material Filtered | Air, Gasoline, Oil |
| Maximum Flow Rate | 162 SCFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 300°F |
| Minimum Flow Rate | 0 SCFM |
| Minimum Operating Temperature | 35°F |
| Noise Reduction Rating | 109 dB |
| Outside Diameter | 2" |
| Overall Length | 3 11/16" |
| Weight | 0.88 lbs. |
| Ship weight (kg) | 0.34 |
| Ship length (cm) | 9.37 |
| Country of Origin | US |
