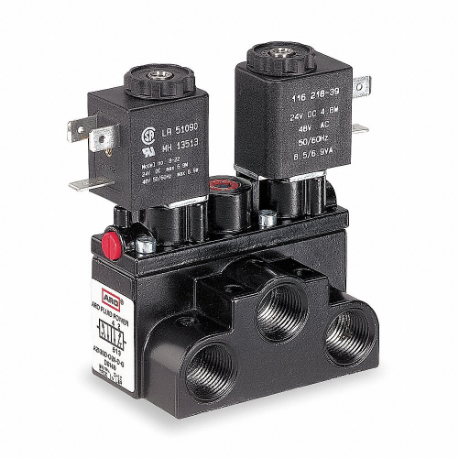

| Item | Solenoid Air Control Valve |
| Ambient Temp. Range | 0°F to +180°F |
| Body Style | Body Ported |
| Coefficient Of Volume | 1.7 |
| Electrical Connection | DIN Connectors |
| Max. Flow | 61 CFM |
| Nema Classification | NEMA 4 |
| Operational Pressure Range | 50 psi to 150 psi |
| Overall Height | 3 5/8" |
| Overall Length | 4" |
| Overall Width | 2 1/2" |
| Pipe Size | 3/8" |
| Shifting Technology | Solenoid, Pilot |
| Vacuum Range | 0 in. hg to 29 in. hg |
| Valve Ways And Positions | 4-Way/2-Position |
| Voltage | 24V DC |
| Actuator Type | Double Solenoid |
| Body Features | Single |
| Body Material | Zinc |
| Coefficient Of Volume (cv) | 1.7 |
| Electrical Connection Type | DIN Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 3/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| Flow Rate - Maximum | 61 CFM |
| For Media | Compressed Air, Inert Gas |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Solenoid Coil Included |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 3/8" |
| Inlet Port Connection Type | NPT |
| Lubrication | Lubrication Not Required |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | 0°F |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Power Consumption | 5.4 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 20 ms |
| Return Action | Solenoid Return |
| Series | Alpha Series |
| Spool Material | Aluminum |
| Standards | CURUS LISTED |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 9.21 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
| Product | Model | Actuator/return | Air Valve Type | Body Style | Cfm | Coefficient Of Volume | Overall Height | Overall Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A211SS-120-A | Solenoid/Spring | 4-Way, 2-Position | Body Ported | 30 | 0.9 | 3.25" | 3.5" | 1 15/16" | €212.08 | |
 |
A212SD-000-N | Solenoid/Solenoid | 4-Way, 2-Position | Body Ported | 50 | 1.5 | 3.25" | 2 15/16" | 1 15/16" | €248.46 | |
 |
A212SD-120-A | Solenoid/Solenoid | 4-Way, 2-Position | Body Ported | 50 | 1.5 | 3.25" | 3 31/32" | 1 15/16" | €342.75 | |
|
A212SS-120-A | Solenoid/Spring | 4-Way, 2-Position | Body Ported | 50 | 1.5 | 3.25" | 3.5" | 1 15/16" | €213.71 | |
 |
A312SD-120-A | Solenoid/Solenoid | 4-Way, 3-Position | Body Ported | 50 | 1.4 | 3.25" | 3 31/32" | 1 15/16" | €416.30 | |
|
A712SD-000-N | Solenoid/Solenoid | 4-Way, 3-Position | Body Ported | 50 | 1.65 | 3.25" | 2 15/16" | 1 15/16" | €321.42 | |
|
A712SD-120-A | Solenoid/Solenoid | 4-Way, 3-Position | Body Ported | 50 | 1.4 | 3.25" | 3 31/32" | 1 15/16" | €409.66 |
