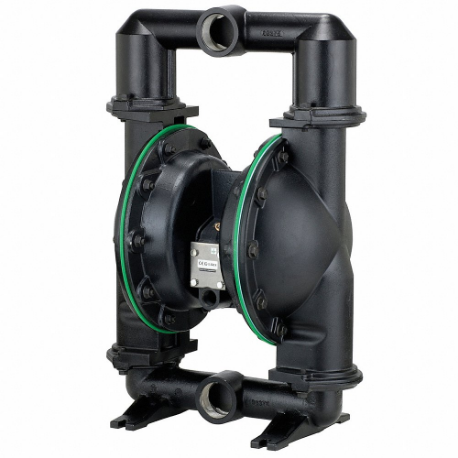

| Item | Diaphragm Pump |
| Air Consumption | 140 SCFM |
| Center Section Material | Aluminum |
| Check Seat Material | Hytrel |
| Compatible Chemicals | Oils, Water |
| Connection Size | 2" |
| Connection Type | NPTF |
| Diaphragm Material | Hytrel |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 178 GPM |
| Flow Rate @ 120 Psi | 196 GPM |
| Flow Rate @ 40 Psi | 130 GPM |
| Flow Rate @ 50 Psi | 148.5 GPM |
| Flow Rate @ 60 Psi | 159.6 GPM |
| Flow Rate @ 70 Psi | 167 GPM |
| Flow Rate @ 80 Psi | 172.5 GPM |
| Flow Rate @ 90 Psi | 175.8 GPM |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 3/4" |
| Inlet Type | NPTF |
| Manifold Connection Type | NPT |
| Max. Flow Rate | 196 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 50000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | -20°F |
| Mounting Hardware Material | Steel |
| Overall Height | 26 2/5" |
| Overall Length | 17.9" |
| Overall Width | 23 4/5" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Series | 6662XX Series |
| Valve Material | Hytrel |
| Valve Type | Ball |
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 67.06 |
| Ship length (cm) | 45.47 |
| Ship width (cm) | 60.45 |
| Country of Origin | CN |
