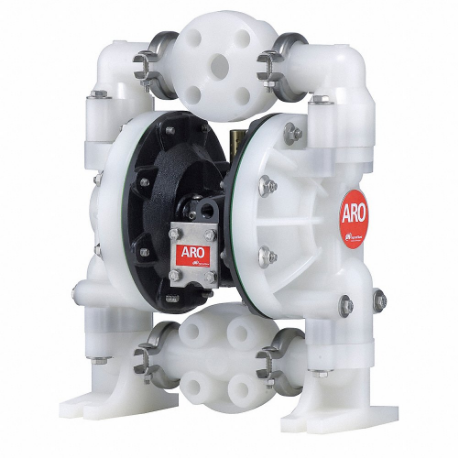

| Item | Diaphragm Pump |
| Air Consumption | 45 SCFM |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Connection Size | 1" |
| Connection Type | Flanged |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 46 GPM |
| Flow Rate @ 120 Psi | 48 GPM |
| Flow Rate @ 40 Psi | 36 GPM |
| Flow Rate @ 50 Psi | 39 GPM |
| Flow Rate @ 60 Psi | 40.8 GPM |
| Flow Rate @ 70 Psi | 42 GPM |
| Flow Rate @ 80 Psi | 44 GPM |
| Flow Rate @ 90 Psi | 45.2 GPM |
| For Use With Potable Systems | Yes |
| Housing Material | Aluminum |
| Inlet Size | 1/4" |
| Inlet Type | Flanged |
| Manifold Connection Type | Flanged |
| Max. Flow Rate | 48 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center, Top |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Overall Height | 16" |
| Overall Length | 21.7" |
| Overall Width | 8.1" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Series | 6661XX Series |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Ship weight (kg) | 10.58 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 55.12 |
| Ship width (cm) | 20.57 |
| Country of Origin | CN |
