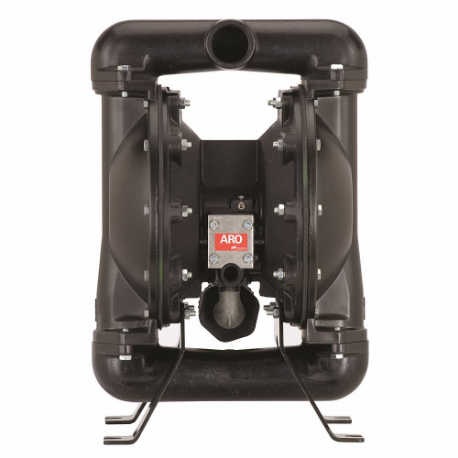

| Item | Diaphragm Pump |
| Air Consumption | 100 SCFM |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Alcohol, Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water |
| Connection Size | 1 1/2" |
| Connection Type | NPTF |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 89 GPM |
| Flow Rate @ 120 Psi | 90 GPM |
| Flow Rate @ 40 Psi | 70 GPM |
| Flow Rate @ 50 Psi | 75 GPM |
| Flow Rate @ 60 Psi | 78 GPM |
| Flow Rate @ 70 Psi | 80 GPM |
| Flow Rate @ 80 Psi | 84.5 GPM |
| Flow Rate @ 90 Psi | 87.2 GPM |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/2" |
| Inlet Type | NPTF |
| Manifold Connection Type | NPT |
| Max. Flow Rate | 90 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Steel |
| Overall Height | 19 3/5" |
| Overall Length | 13.1" |
| Overall Width | 12" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Series | 6661XX Series |
| Valve Material | PTFE |
| Valve Type | Ball |
| Ship weight (kg) | 28.76 |
| Ship height (cm) | 49.78 |
| Ship length (cm) | 33.27 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
