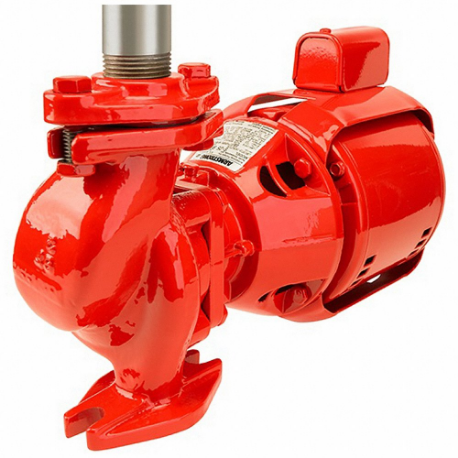

ARMSTRONG WORLD INDUSTRIES 182212-669 Hydronic Circulating Pump, Std, Flanged, 2/5 HP, 26 ft Max. Head
Get it by Tuesday, Jun 17
€2,909.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pump |
| Amps | 8.2A |
| Body Gasket Material | EPDM |
| Compatible Discharge Pipe Size | 2" |
| Connection Type | Flanged |
| Electrical Connection Type | Hardwired |
| Enclosure Type | Open Dripproof |
| Face To Face Dimension | 8 1/2" |
| Flange Or Union Included | No |
| For Pipe Size | 2" |
| For Use With | Hydronic Systems |
| For Use With Potable Systems | No |
| Frequency | 60 Hz |
| Housing Material | Cast Iron |
| Hp | 2/5 hp |
| Impeller Material | Plastic |
| Includes | Thermal Overload Protection |
| Max. Flow Rate @ 1 Ft. | 140 GPM |
| Max. Flow Rate @ 10 Ft. | 115 GPM |
| Max. Flow Rate @ 15 Ft. | 92 GPM |
| Max. Flow Rate @ 20 Ft. | 35 GPM |
| Max. Flow Rate @ 5 Ft. | 130 GPM |
| Max. Head | 26 ft. |
| Max. Media Temp. | 230°F |
| Max. Operating Pressure | 150 psi |
| Max. Rpm | 3600 RPM |
| Media Type | 30% Glycol, Water |
| Min. Media Temp. | -4°F |
| Mounting Location | Inline |
| Mounting Position | Horizontal |
| Nameplate Voltage | 120V AC |
| No. Of Flange Mounting Holes | 4 |
| No. Of Speeds | 1 |
| Overall Height | 8 1/2" |
| Overall Length | 10.9" |
| Overall Width | 5 1/5" |
| Pump Type | Standard |
| Rotor Type | Dry |
| Series | E33.2 -2 Series |
| Voltage | 115V AC |
| Wetted Material | Cast Iron |
| Compatible Media Type | 30% Glycol, Water |
| Compatible Pipe Size | 2" |
| Horsepower | 2/5 hp |
| Manufacturer Warranty Length | 2.5 yrs. |
| Maximum Feet Of Head | 26 ft. |
| Maximum Flow Rate @ 1 Foot Of Head | 140 GPM |
| Maximum Flow Rate @ 10 Feet Of Head | 115 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 92 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 35 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 130 GPM |
| Maximum Media Temperature | 230°F |
| Maximum Operating Pressure | 150 psi |
| Maximum Rpm | 3600 RPM |
| Minimum Media Temperature | -4°F |
| Motor Enclosure Design | Open Drip Proof |
| Number Of Flange Mounting Holes | 4 |
| Number Of Speeds | 1 |
| Phase | Single |
| Phase And Brand | ARMSTRONG PUMPS INC. Single Phase |
| Pump Housing Material | Cast Iron |
| Series Family | E.2 |
| Standards | CSA, ETL |
| Ship weight (kg) | 11.75 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 27.69 |
| Ship width (cm) | 13.21 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
106284MF-742 | €6,388.23 | |
|
116475-742 | €6,461.21 | |
 |
119282-313 | €6,593.07 | |
 |
119281-313 | €6,593.07 | |
 |
182212-645 | €1,677.33 | |
|
182212-604 | €1,660.74 | |
|
110223-326 | €745.27 |
