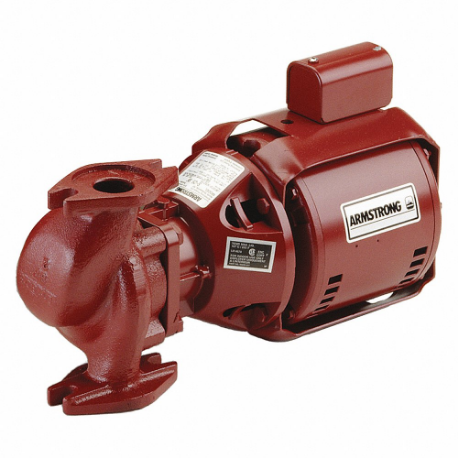

ARMSTRONG WORLD INDUSTRIES 174033MF-013 Hydronic Circulating Pump, 3-Piece, Flanged, 1/6 HP, 13 ft Max. Head
Get it by Monday, Jun 16
€2,392.52 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pump |
| Amps | 2.4A |
| Body Gasket Material | Sintered Silicon Carbide |
| Compatible Discharge Pipe Size | 2" |
| Connection Type | Flanged |
| Face To Face Dimension | 8 1/2" |
| Flange Or Union Included | Yes |
| For Pipe Size | 2" |
| For Use With | Hydronic Systems |
| For Use With Potable Systems | No |
| Housing Material | Cast Iron |
| Hp | 1/6 hp |
| Impeller Material | Non Ferrous Metal |
| Max. Flow Rate @ 1 Ft. | 65 GPM |
| Max. Flow Rate @ 10 Ft. | 28 GPM |
| Max. Flow Rate @ 5 Ft. | 50 GPM |
| Max. Head | 13 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 175 psi |
| Max. Rpm | 1800 RPM |
| Media Type | Water |
| Mounting Location | Inline |
| No. Of Speeds | 1 |
| Overall Height | 6 1/2" |
| Overall Length | 15" |
| Overall Width | 12 1/2" |
| Pipe To Flange Or Union Connection Type | FNPT |
| Pump Type | Three Piece |
| Series | S-35 Series |
| Voltage | 115V AC |
| Ship weight (kg) | 15.55 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
106284MF-742 | €6,388.23 | |
|
116475-742 | €6,461.21 | |
 |
119282-313 | €6,593.07 | |
 |
119281-313 | €6,593.07 | |
 |
182212-645 | €1,677.33 | |
|
182212-604 | €1,660.74 | |
|
110223-326 | €745.27 |
