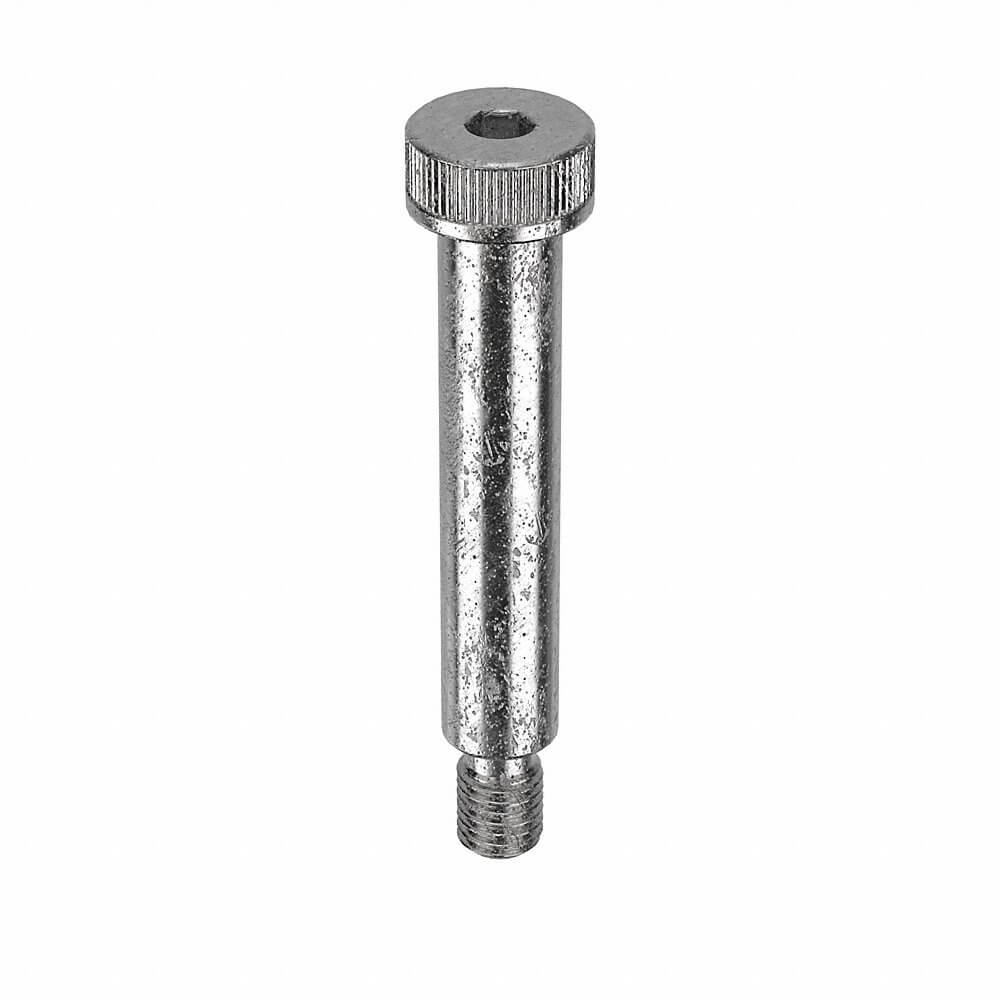

| Item | Shoulder Screw |
| Drive Size | 8 mm |
| Drive Type | Hex Socket |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 24 mm |
| Head Height | 11 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Min. Tensile Strength | 70000 psi |
| Shoulder Dia. | 16 mm |
| Shoulder Length | 80 mm |
| Shoulder Length Tolerance | -0 mm to +0.25 mm |
| System Of Measurement | Metric |
| Thread Length | 18 mm |
| Thread Size | M12 x 1.75 |
| Type | Standard |
| Dimensional Standards | ISO 7379-1983 |
| Display Qty | 1 |
| Finish | Plain |
| Head Diameter | 24 mm |
| Head Texture | Knurled |
| Material Grade/class | 18-8 |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Diameter | 16 mm |
| Shoulder Diameter Tolerance | -0.04 mm to +0 mm |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Pitch | 1.75 mm |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 2.79 |
| HS code | 7318158030 |
| Country of Origin | US |
