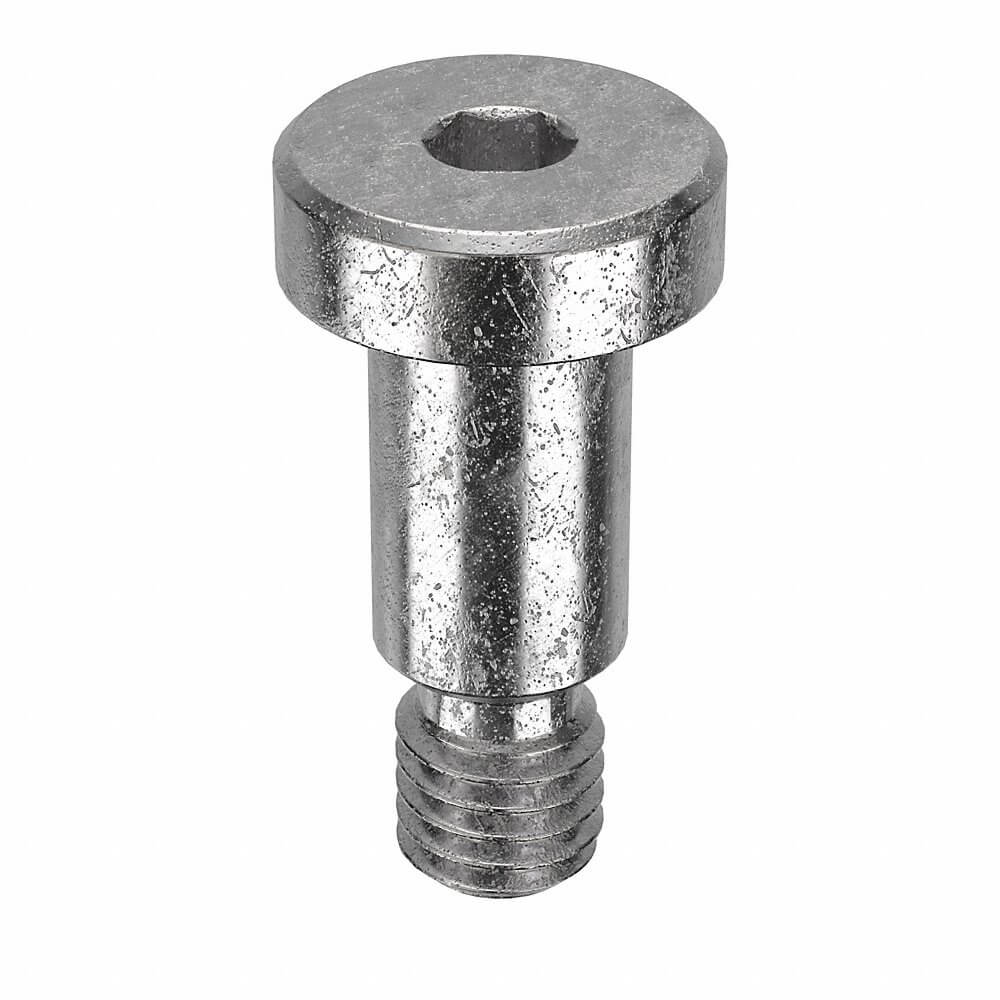

| Item | Shoulder Screw |
| Class | Class 2A |
| Drive Size | 3 mm |
| Drive Type | Hex Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 10 mm |
| Head Height | 5 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Min. Tensile Strength | 80000 psi |
| Shoulder Dia. | 6 mm |
| Shoulder Length | 10 mm |
| Shoulder Length Tolerance | 0.05 mm |
| System Of Measurement | Metric |
| Thread Length | 6 mm |
| Thread Size | M5 x 0.8 |
| Type | Precision |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Head Diameter | 10 mm |
| Material Grade/class | 18-8 |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Diameter | 6 mm |
| Shoulder Diameter Tolerance | -0.013 mm to +0 mm |
| Tensile Strength | 80000 psi |
| Thread Fit | 2A |
| Thread Pitch | 0.8 mm |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156010 |
| Country of Origin | US |
