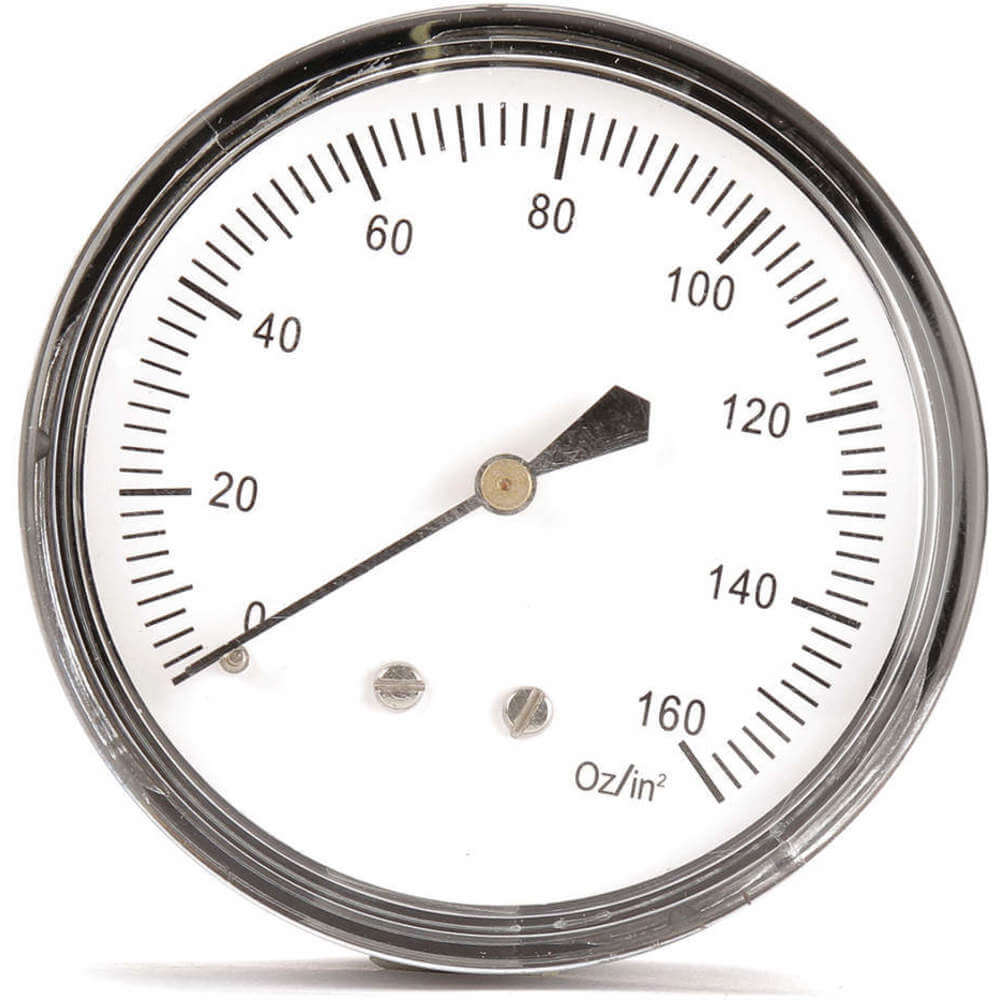

| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Case Color | Black |
| Case Material | Steel |
| Connection Location | Back |
| Dial Size | 2 1/2" |
| Gauge Type | Low Pressure Diaphragm |
| Lens Material | Polycarbonate |
| Operating Temp. Range | -40°F to +160°F |
| Smallest Graduation | 2 oz./sq. in. |
| Tube Material | Copper Alloy |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +160°F |
| Application | Pressure Detection |
| Cleaned For Oxygen Service | No |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | For Inert Gases |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pressure Gauge Type | Low Pressure Gauge |
| Pressure Range | 0 oz./sq. in. to 160 oz./sq. in. |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 160 |
| Primary Scale Minor Graduations | 2 |
| Primary Scale Units | oz./in. |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Copper Alloy |
| Sensor Type | Diaphragm |
| Series | YE65Z Series |
| Socket Material | Copper Alloy HPb59-1 |
| Vibration Resistance | None |
| Wetted Parts Material | Copper Alloy |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 7.87 |
| HS code | 9026208000 |
| Country of Origin | CN |
| Product | Model | Accuracy | Case Color | Case Material | Connection Location | Connection Size | Dial Size | Gauge Type | Lens Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A486 | +/-0.5% | Black | Cast Aluminum | Lower | 1/4" NPT | 4.5" | Process | Glass | - | RFQ
|
 |
11A491 | +/-0.5% | Black | Cast Aluminum | Lower | 1/4" NPT | 4.5" | Process | Glass | - | RFQ
|
 |
11A495 | +/-0.5% | Black | Cast Aluminum | Lower | 1/4" NPT | 4.5" | Process | Glass | - | RFQ
|
 |
11A497 | +/-0.5% | Black | Cast Aluminum | Lower | 1/4" NPT | 4.5" | Process | Polycarbonate | €202.59 | |
 |
11A524 | +/-0.5% | Silver | Stainless Steel | Lower | 1/4" NPT | 4.5" | Process | Glass | €171.49 | |
 |
11A527 | +/-0.5% | Silver | Stainless Steel | Lower | 1/4" NPT | 4.5" | Process | Glass | €171.49 | |
 |
11A531 | +/-0.5% | Silver | Stainless Steel | Lower | 1/4" NPT | 4.5" | Process | Glass | €171.49 |
