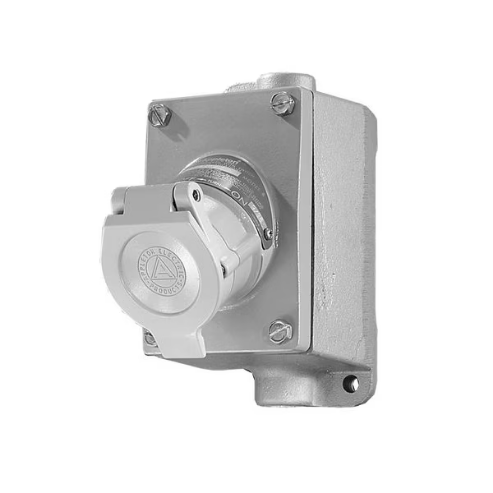

| Item | Hazardous Location Receptacle |
| Amps | 20A |
| Circuit Breaker | Yes |
| Finish | Triple Coat Epoxy Coat |
| For Environment | Hazardous Location |
| For Maximum Cable Dia. | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Gfci | Yes |
| Horsepower Rating | 1 hp |
| Hub Type | Feed Through |
| Material | Copper Free Aluminum |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Voltage | 125V |
| Current Rating | 20A |
| For Maximum Cable Diameter | 0.639" |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Housing Material | Copper-Free Aluminum |
| Nema Enclosure Rating | NEMA 3RX, NEMA 7CD, NEMA 9FG |
| Nema Receptacle Configuration | NEMA 5-20R |
| Standards | UL LISTED |
| Voltage Rating | 120V AC |
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 8538908080 |
| Country of Origin | MX |
| Model | Amps | Finish | Hp | Hub Size | Hub Style | Hz | Item | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DBR3034HFB50 | 30 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €10,237.21 | |
| DBR6023EH100 | 60 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €8,903.35 | |
| DBR6023EH50 | 60 | Epoxy Powder Coat | 10 | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €8,377.65 | |
| DBR6023EH70 | 60 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €8,903.35 | |
| DBR6023EH90 | 60 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €8,903.35 | |
| DBR6023FB100 | 60 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €9,257.42 | |
| DBR6023FB50 | 60 | Epoxy Powder Coat | - | - | - | - | Hazardous Area Receptacle | 3, 3R, 4, 4X, 9FG | €8,667.53 |
