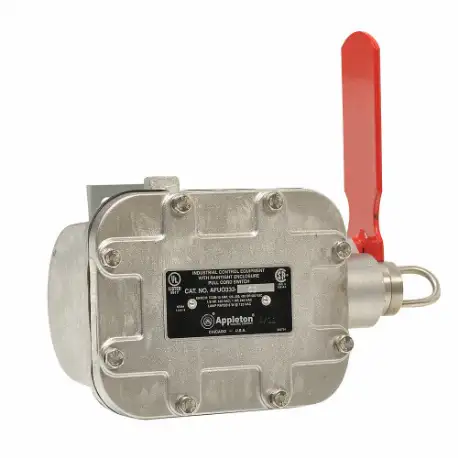

| Item | Pull Cord Switch |
| Application: | Hazardous Location |
| Approval: | UL 508/698/1203 |
| Approvals | UL |
| Body Finish: | Peened |
| Body Material: | Cast Aluminum |
| Cable/conduit Entry: | (2) 1 Inch Hub |
| Contact Configuration: | (2) SPDT |
| Current Rating: | 20 Ampere at 125/250/480 VAC, 10 Ampere at 125 VAC, 0.5 Ampere at 125 VDC, 0.25 Ampere at 250 VDC |
| Enclosure Type | Feed-Thru |
| Enclosure: | Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III |
| Family Series | Appleton Switches, AFUX Series |
| Illuminated | No |
| Number Of Pilot Lights | 0 |
| Number Of Pushbuttons | 0 |
| Number Of Selector Switches | 1 |
| Operating Force: | 25 Lb |
| Operator Type: | Flag Arm |
| Product Series | AFUX |
| Selector Type | Lever |
| Size: | 11-3/16 Inch L x 7-7/8 Inch D x 5-1/2 Inch H |
| Total Number Of Devices | 1 |
| Type: | Single End Right Hand, Pull Cord |
| Voltage Rating: | 125/250/480 VAC, 125/250 VDC |
