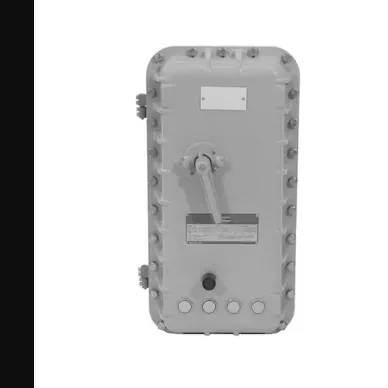

APPLETON ELECTRIC AE1BB2W1CF Combination Full Voltage Motor Starter, 120V AC, 240V AC
Get it by Tuesday, Jun 17
€7,052.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Combination Full Voltage Motor Starter |
| Auxiliary Contact Module Capacity | 4 |
| Coil Volts | 120V AC |
| Conduit Size | 1 1/2" |
| Depth | 11.38" |
| Height | 27.63" |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 5 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hz | 60 Hz |
| Includes | Block Hinges, Operator Shafts, O-Ring, Cover Bolts, Handle |
| Includes Auxiliary Contacts | No |
| Includes Control Transformer | No |
| Max. Hp | 5 hp |
| Max. Overload Relay Amps Setting | Not Applicable |
| Minimum Overload Relay Current Setting | Not Applicable |
| Nema Enclosure Type | NEMA 4, NEMA 4X, NEMA 7 (B, C, D), NEMA 9 (E, F, G) |
| Nema Size | 1 |
| No. Of Auxillary Contacts | 8 |
| No. Of Terminals | 4 |
| Number Of Poles | 3 |
| Operator | Handle |
| Overall Depth | 11.38" |
| Overall Height | 27.63" |
| Overall Width | 14.13" |
| Overload Protection Type | Thermal |
| Phase | 3 |
| Short Circuit Protection | Circuit Breaker |
| Starter Type | Non Reversing , Nonreversing |
| Type | NEMA |
| Width | 14.13" |
| Ship weight (kg) | 39.38 |
| Ship height (cm) | 32.51 |
| Ship length (cm) | 52.32 |
| Ship width (cm) | 43.18 |
| HS code | 8536504000 |
| Country of Origin | US |
| Product | Model | Amps Ac | Max. Hp | Price | |
|---|---|---|---|---|---|
|
AE1BB2W1CG | 50 | 7.5 | €7,052.70 |
