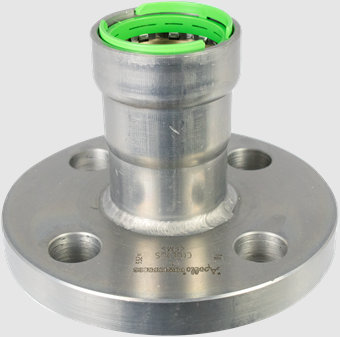

APOLLO VALVES PWR7481201 Flange Adapter, Size 1-1/4 Inch
Get it by Tuesday, Jun 17
€312.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Flange Adapter |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x Flange |
| Contour Code | DW |
| D1 | 1.66 |
| D2 | 1.66 |
| D2-2 | 16 |
| Dimensions | 4.53" x 4.53" x 3.58" |
| Eccentric | No |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | PN 16 |
| Grade | Grade ST 35 |
| High Tensile Strength | Yes |
| Intrastat Code | 73079980 |
| K2 | 89 |
| Length | 115 mm |
| Length Of Connection 1 | 3 14/25" |
| Length Of Connection 2 | 0.63" |
| Material | Steel |
| Max. Media Temp. | 302°F |
| Max. Operating Pressure Liquid | 232 psi |
| Medium Temp. (continuous) | -40°F to +302°F |
| Min. Media Temp. | -40°F |
| N2 | 4 |
| Outer Pipe Dia. 1 | 1.66" |
| Outer Pipe Dia. 2 | 1.66" |
| Peak Media Temp. | 320°F |
| Pressure Rating | 16 bar |
| Reducing | No |
| Seal Material | EPDM |
| Series | PowerPress Series |
| Shape | Straight |
| Size | 1 1/4" |
| System Specific | Yes |
| Wall Thickness Connection 1 | 2.9 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 1.67" |
| Z1 | 1.67 |
| Zeta Value | 0.26 |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 9.09 |
| Ship length (cm) | 11.51 |
| Ship width (cm) | 11.51 |
| Country of Origin | NL |
| Model | Price | |
|---|---|---|
| PWR7481177 | €273.89 | |
| PWR7481188 | €290.29 | |
| PWR7481199 | €363.51 | |
| PWR7481210 | €340.08 | |
| PWR7481221 | €423.57 | |
| PWR7482411 | €277.64 | |
| PWR7482420 | €290.88 |
