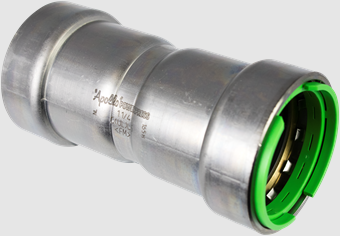

APOLLO VALVES PWR7480033 Coupling, With Stop, 1-1/4Inch Size, Powerpress
Get it by Tuesday, Jun 17
€81.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Coupling with Stop |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press |
| Contour Code | DW |
| D1 | 1.66 |
| D2 | 1.66 |
| Dimensions | 4.41" x 2 1/5" x 2 1/5" |
| Eccentric | No |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | PN 16 |
| Grade | Grade ST 35 |
| High Tensile Strength | Yes |
| Intrastat Code | 73079980 |
| Length | 112 mm |
| Length Of Connection 1 | 2.19" |
| Length Of Connection 2 | 2.19" |
| Material | Steel |
| Max. Media Temp. | 275°F |
| Max. Operating Pressure Liquid | 232 psi |
| Medium Temp. (continuous) | -40°F to +275°F |
| Min. Media Temp. | -40°F |
| Outer Pipe Dia. 1 | 1.66" |
| Outer Pipe Dia. 2 | 1.66" |
| Peak Media Temp. | 302°F |
| Reducing | No |
| Seal Material | EPDM |
| Series | PowerPress Series |
| Shape | Straight |
| Size | 1 1/4" |
| System Specific | Yes |
| Wall Thickness Connection 1 | 2.9 mm |
| Wall Thickness Connection 2 | 2.9 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 0.3" |
| Working Length Connection 2 | 0.31" |
| Z1 | 0.3 |
| Z2 | 0.32 |
| Zeta Value | 0.26 |
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 11.2 |
| Ship width (cm) | 5.59 |
| Country of Origin | NL |
| Model | Price | |
|---|---|---|
| PWR7480000 | €37.69 | |
| PWR7480011 | €55.80 | |
| PWR7480022 | €80.41 | |
| PWR7480044 | €110.59 | |
| PWR7480055 | €158.69 | |
| PWR7480066 | €45.67 | |
| PWR7480077 | €66.71 |
