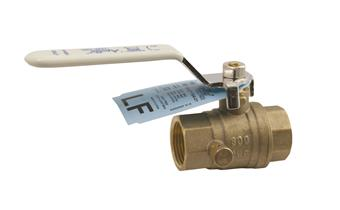

| Item | Ball Valve |
| Ball Material | Brass |
| Ball Valve Product Group | Manual |
| Body Style | Inline |
| Color | Yellow |
| Connection Type | Solder |
| Connection Type | Sweat x Sweat |
| D-1 | 1.29 |
| D1 | 1.13 |
| D2 | 1.13 |
| E | 0.71 |
| Full Bore | Yes |
| Grease-free | No |
| Handgrip Length | 0.61" |
| Handle Finish | Steel Plated |
| Handle Type | Lever |
| Handle/hand Wheel Height | 1.05" |
| Housing Construction | 2-Part |
| Lead Free | Yes |
| Length Of Connection 1 | 1.65" |
| Length Of Connection 2 | 1.65" |
| M1 | 0.61 |
| M2 | 4.57 |
| Material | Brass |
| Max. Pressure | 600 psi CWP |
| Medically Clean | No |
| Outer Pipe Dia. Connection 1 | 1.13" |
| Outer Pipe Dia. Connection 2 | 1.13" |
| Port Type | Full |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 95A Series Ball Valves |
| Size | 1" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Proof |
| Temp. Range | 32°F to 250°F |
| U | 0.83 |
| V | 1.44 |
| With Filter | No |
| Working Length Connection 1 | 0.75" |
| Working Length Connection 2 | 0.75" |
| Y | 1.05 |
| Z1 | 0.75 |
| Z2 | 0.75 |
| Handle Material | Zinc Plated Steel |
| Max. Media Temperature | 250°F |
| Max. Operating Pressure | 600 psi |
| Overall Length | 4.33" |
| Standards | CRN, MATERIAL QUALITY C27451 (LEAD-FREE), NSF |
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 18.42 |
| HS code | 8481801085 |
| Country of Origin | CN |
| Model | Ball Material | Body Material | Connection Type | Handle Material | Hose I.d. | Max. Pressure | Pipe Size | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 95ALF10401 | Lead-Free Chrome-Plated Brass | Lead-Free Bronze | FNPT x FNPT | Zinc-Plated Steel with Vinyl Grip | - | 400 psi WOG | 3/4" | PTFE | €38.10 | |
| 95ALF10501 | Lead-Free Chrome-Plated Brass | Lead-Free Bronze | FNPT x FNPT | Zinc-Plated Steel with Vinyl Grip | - | 400 psi WOG | 1" | PTFE | €53.59 | |
| 95ALF20301 | Brass | Brass | Solder x Solder | Steel Plated | 1/2" | 600 CWP | 1/2" | EPDM | €24.55 | |
| 95ALF20401 | Brass | Brass | Solder x Solder | Steel Plated | 3/4" | 600 CWP | 3/4" | EPDM | €34.31 | |
| 95ALF10301 | - | - | Fnpt | - | - | - | - | - | €28.50 |
