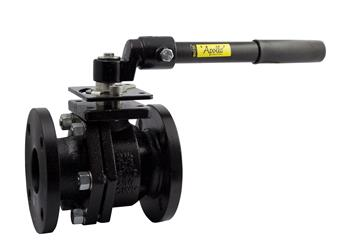

| Item | Ball Valve |
| Actuator Type | Lever Handle |
| Ball Material | Stainless steel |
| Color | Black |
| Connection Type | Flange |
| D-1 | 9 |
| D-2 | 229 |
| D2-2 | 19 |
| Dimensions | 20 1/4" x 9" x 13 1/2" |
| Full Bore | Yes |
| Grade | Grade 304 |
| Grease-free | No |
| Handgrip Length | 0.89" |
| Handle/hand Wheel Height | 2.5" |
| Housing Construction | 2-Part |
| K2 | 190.5 |
| Length Of Connection 1 | 4.3" |
| Length Of Connection 2 | 2.83" |
| M1 | 0.89 |
| M2 | 15.75 |
| Material | Cast iron |
| Max. Operating Pressure | 200 psi |
| Medically Clean | No |
| N2 | 8 |
| Port Type | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 6PLF Series Ball Valves |
| Size | 4" |
| Trim Material | Stainless Steel |
| V | 6.5 |
| Valve Type | Flanged Ball |
| With Coupling Connection 1 | No |
| With Coupling Connection 2 | No |
| With Drain Possibility (connection) | No |
| With Drain Valve | No |
| With Filter | No |
| With Insulation Shell | No |
| With Non-return Valve | No |
| With Thermometer | No |
| Y | 2.5 |
| Ship weight (kg) | 33.63 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 51.44 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
