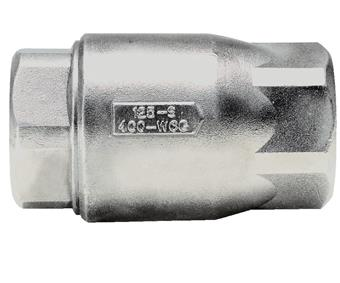

| Item | Ball Cone Spring Check Valve |
| Color | Silver |
| Connection Type | FNPT |
| Connection Type | FNPT x FNPT |
| Cracking Pressure | 0.5 psi |
| Grade | Grade 316 |
| Length | 2.062" |
| Max. Steam Pressure | 125 psi |
| Max. Temp. | 353°F |
| Max. Water Pressure | 400 psi |
| Mounting Position | Horizontal/Vertical |
| Overall Height | 1 1/8" |
| Seal Material | EPDM |
| Seat Material | RPTFE |
| Series | 62 Series Check Valves |
| Size | 1/4" |
| Spring Material | Stainless Steel |
| Suitable For Central Heating Water | No |
| Width | 2.062" |
| 3-a Compliance | Not Rated |
| Ball Material | RPTFE |
| Body Material | CF8M Stainless Steel |
| Check Mechanism | Ball |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Flow Coefficient (cv) | 0.85 |
| Flow Rate | 0.85 GPM |
| For Media | Compressed Air, Steam |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure (steam) | 125 psi |
| Media Temp. Range | 33°F to 350°F |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Maximum | 350°F |
| Operating Temperature - Minimum | 33°F |
| Overall Length | 2.0625" |
| Silent Check | Standard |
| Standards | CRN |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 62 |
| Valve Ways | 2-Way |
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 4.83 |
| HS code | 8481301090 |
| Country of Origin | US |
