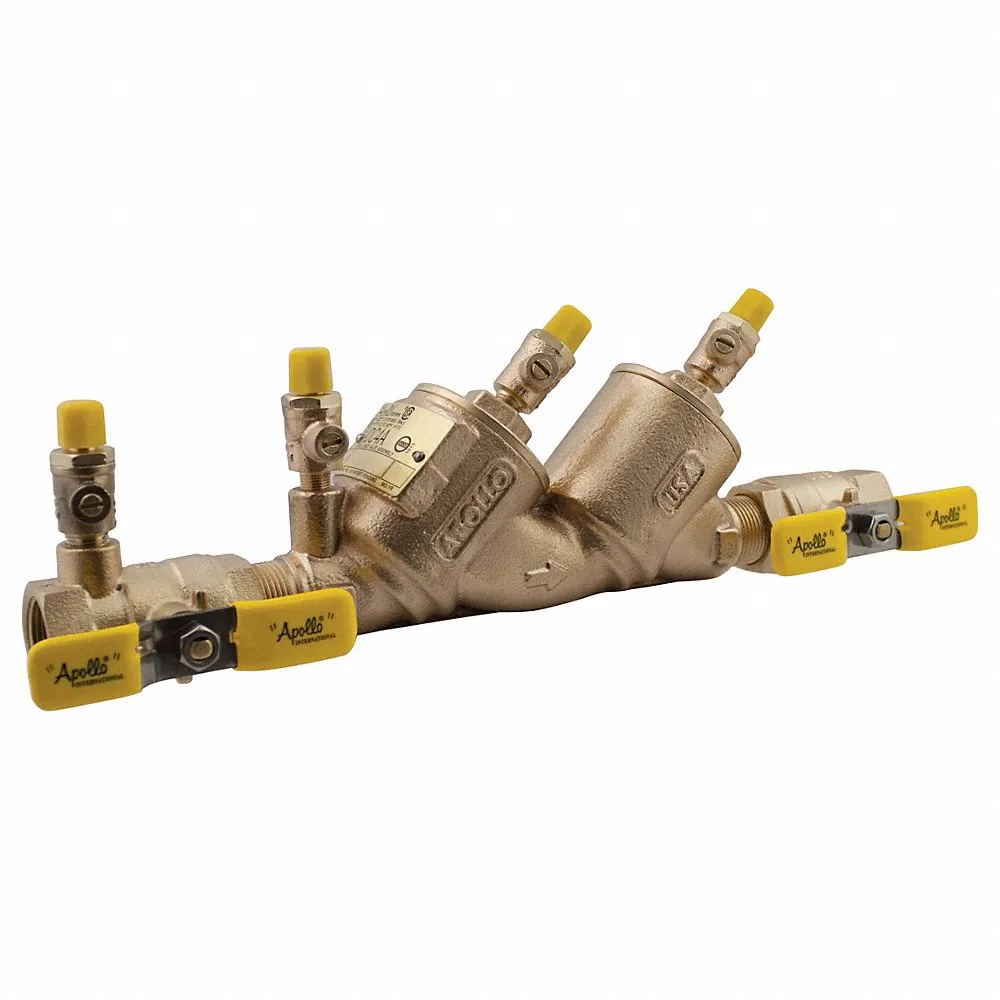

| Item | Assembly |
| Body Material | Bronze |
| Connection Type | FNPT |
| Features | 5 Year Warranty, Ball Valve Shut-Offs With Ss Handles And Nuts Standard, Chloramine-Resistant Elastomers, Compact, Yet Easy To Maintain, Corrosion Resistant, Designed, Cast, Machined, AssembLED And Tested In The Usa, Low Pressure Loss, No Special Tools Required, Threaded Testcock Protectors, Top Access For Fast Testing And Maintenance |
| Length | 17 1/2" |
| Max. Operating Pressure At 20°c | 12.07 Bar |
| Max. Pressure | 175 psi |
| Max. Temp. | 180°F |
| Series | 4A Series |
| Shape | Straight |
| Size | 1 1/4" |
| Suitable For Central Heating Water | Yes |
| Temp. Range | +33°F to +180°F |
| Width | 4 3/4" |
| Backflow Preventer Type | Double Check Assembly (DC) |
| Body Material | Bronze |
| Check Mechanism Material | Glass-Filled PPO |
| Check Valve Length | 11 3/4" |
| Configuration | Standard Configuration |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/4" |
| Connection Size - Side 2 | 1 1/4" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Flow Rate | 120 GPM |
| For Media | Water |
| Handle Material | Stainless Steel |
| Hazard Protection Level | Low Health Hazard |
| Includes | No Items |
| Includes Atmospheric Vent | No Atmospheric Vent |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No Strainer |
| Manufacturer Warranty | 5 yrs. |
| Max. Media Temperature | 180°F |
| Max. Pressure (cwp) | 175 psi |
| Media Temp. Range | 33°F to 180°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Number Of Test Ports | 4 |
| Overall Height | 4 1/2" |
| Overall Length | 17.5" |
| Overall Width | 4 3/4" |
| Pipe Size | 1 1/4" |
| Protection Type | Back Pressure, Back Siphonage |
| Seat Material | Silicone |
| Shut-off Valve Type | Ball Valve |
| Spring Material | Stainless Steel |
| Standards | BUILD AMERICA BUY AMERICA (BABA) ACT, BUY AMERICAN ACT (BAA) |
| Valve Series | 4A |
| Ship weight (kg) | 8.42 |
