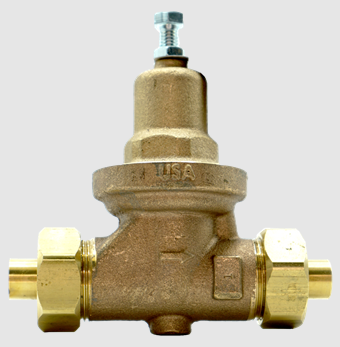

APOLLO VALVES 36LF50801 Water Pressure Reducing Valve 2 Inch
Get it by Tuesday, Jun 17
€831.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Water Pressure Reducing Valve |
| Color | Yellow, Bronze |
| Connection Type | Solder |
| Dimensions | 10 1/2" x 5 3/4" x 11 1/2" |
| Finish | None |
| Height | 292.1 mm |
| Lead Free | Yes |
| Length | 10 1/2" |
| Max. Medium Temp. | 180°F |
| Max. Operating Pressure | 300 psi |
| Min. Medium Temp. | 33°F |
| Outer Pipe Dia. Connection 1 | 2.13" |
| Outer Pipe Dia. Connection 2 | 2.13" |
| Peak Medium Temp. | 180°F |
| Preset Pressure Settings | 50 psi |
| Pressure Rating | 25 psi to 75 psi, 5 psig to 75 psig |
| Series | 36 Series Pressure Reducing Valves |
| Shape | Straight |
| Size | 2" |
| Strainer | No |
| Suitable For Gases | No |
| Suitable For Liquids | No |
| Suitable For Steam | No |
| Surface Protection | None |
| Type | Standard |
| With Pressure Gauge | No |
| Application | Commercial Use, Institutional Use, Residential Use |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Connections | Solder x Solder |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 2" |
| Low-lead Compliance | Low-Lead Compliant |
| Max. Continuous Flow Rate | 127 GPM |
| Max. Operating Temperature | 180°F |
| Nsf Certifications For Food And Drinking Water | NSF 372 |
| Operating Pressure Range | 25 psi to 300 psi |
| Outlet Connection Size | 2" |
| Overall Height | 5 5/8" |
| Overall Width | 10 1/2" |
| Pressure Adjustment Range | 25 psig to 75 psig |
| Seat Material | EPDM |
| Standards | ASSE 1003, BUILD AMERICA BUY AMERICA (BABA) ACT, BUY AMERICAN ACT (BAA), CSA B356 |
| Ship weight (kg) | 10.13 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 14.61 |
| HS code | 8481100090 |
| Country of Origin | US |
| Model | Connection Type | Height | Item | Length | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|
| 36LF10301 | Single Union FNPT | 5 8/9" | Water Pressure Reducing Valve | 4 57/64" | 1/2" | €192.57 | |
| 36LF10401 | Single Union FNPT | 5 8/9" | Water Pressure Reducing Valve | 4 57/64" | 3/4" | €204.72 | |
| 36LF10501 | Single Union FNPT | 6 8/9" | Water Pressure Reducing Valve | 5.5" | 1" | €272.13 | |
| 36LF10601 | Single Union FNPT | 8 8/9" | Water Pressure Reducing Valve | 6.5" | 1.25" | €439.47 | |
| 36LF10701 | Single Union FNPT | 8 8/9" | Water Pressure Reducing Valve | 6.625" | 1.5" | €368.93 | |
| 36LF10801 | Single Union FNPT | 11.5" | Water Pressure Reducing Valve | 8.5" | 2" | €683.86 | |
| 36LF20301 | Fnpt | 5 8/9" | Water Pressure Reducing Valve | 4" | 1/2" | €170.78 |
