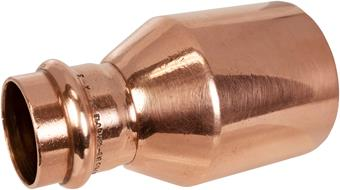

APOLLO VALVES 10075150 Fitting Reducer, Copper, Sd, 1 X 1/2 Inch
Get it by Tuesday, Jun 17
€15.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Fitting Reducer |
| Capped | No |
| Color | Copper |
| Connection Type | Tube End x Press |
| Contour Code | V |
| D1 | 1.13 |
| D2 | 0.63 |
| Dimensions | 1 1/4" x 2.37" x 1 1/4" |
| Eccentric | No |
| Finish | None |
| Grade | Cu-DHP |
| Housing Construction | 1-Part |
| Length | 31.75 mm |
| Length Of Connection 1 | 1.33" |
| Length Of Connection 2 | 1.08" |
| Material | Copper |
| Max. Medium Temp. | 250°F |
| Max. Operating Pressure | 300 psi |
| Medium Temp. (continuous) | 32°F to 250°F |
| Min. Medium Temp. | 32°F |
| Outer Pipe Dia. Connection 1 | 1.13" |
| Outer Pipe Dia. Connection 2 | 0.63" |
| Reducing | Yes |
| Seal Material | EPDM |
| Series | ApolloPress Series |
| Shape | Straight, Reducer |
| Size | 1" x 1/2" |
| Surface Protection | None |
| System Specific | No |
| Wall Thickness, Connection 2 | 1.35 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | No |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 2 | 0.23" |
| Z2 | 0.23 |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 6.02 |
| Country of Origin | US |
