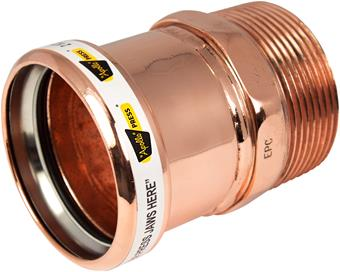

| Item | Adapter |
| Capped | No |
| Color | Copper |
| Connection Type | Press x MNPT |
| Contour Code | V |
| D1 | 2.63 |
| D2 | 2.88 |
| Dimensions | 3.16" x 4.11" x 3.16" |
| Eccentric | No |
| Finish | None |
| Grade | Cu-DHP |
| Housing Construction | 1-Part |
| Length | 80.26 mm |
| Length Of Connection 1 | 2.4" |
| Length Of Connection 2 | 1.64" |
| Material | Copper |
| Max. Medium Temp. | 250°F |
| Max. Operating Pressure | 300 psi |
| Medium Temp. (continuous) | 32°F to 250°F |
| Min. Medium Temp. | 32°F |
| Outer Pipe Dia. Connection 1 | 2.63" |
| Outer Pipe Dia. Connection 2 | 2.88" |
| Reducing | No |
| Seal Material | EPDM |
| Series | ApolloPress Series |
| Shape | Straight |
| Size | 2 1/2" x 2 1/2" |
| Slw2 | 3.16 |
| Surface Protection | None |
| System Specific | No |
| Wall Thickness, Connection 1 | 1.98 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 0.5" |
| Z1 | 0.5 |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.03 |
| Ship length (cm) | 8.03 |
| Ship width (cm) | 10.44 |
| Country of Origin | US |
