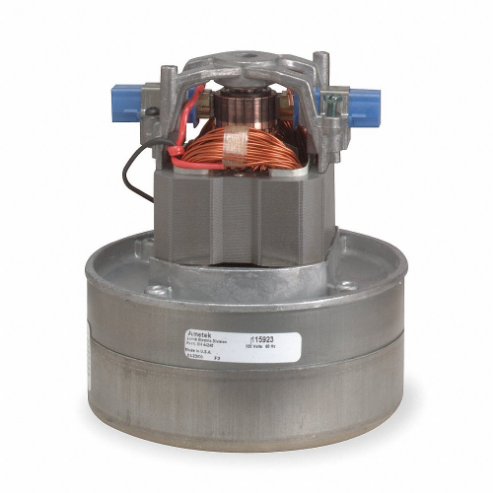

| Item | Vacuum Motor |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball |
| Blower Stages | 2 |
| Body Dia. | 5 5/7" |
| Cfm @ 2-in. Orifice | 115 CFM |
| Discharge | Thru Flow |
| Duty Cycle | Intermittent |
| Efficiency Group | High |
| Frame | Non-Standard |
| Frequency | 50/60 Hz |
| Full Load Amps | 9.4A |
| Insulation Class | Class A |
| Max. Air Watts | 356 W |
| Max. Amps | 9.5A |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor/blower Type | Thru Flow |
| Mounting Bracket Material | Aluminum |
| Mounting Type | Lug |
| Nameplate Rpm | 25550 RPM |
| No. Of Speeds | 1 |
| Overall Height | 5 13/16" |
| Overall Length | 5 7/8" |
| Phase | 1 |
| Replacement Brushes | 2UV81 |
| Thermal Protection | Automatic |
| Vacuum Rating | 96.4 |
| Voltage | 120V AC |
| Hz | 60 |
| Ins. Class | Class A |
| Max. Ambient Temp. | 40°C |
| Motor Application | Universal AC, DC Motor |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Mounting Brackets | Metal |
| Standards | CSA (LR31393), UL (E47185) |
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 14.92 |
| Ship width (cm) | 14.48 |
| HS code | 8414596095 |
| Country of Origin | MX |
