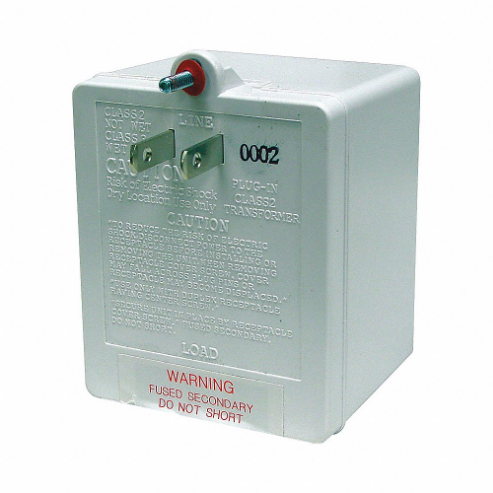

| Item | Plug-in Transformer |
| Batteries Required | No |
| Color | Tan |
| Connection Type | Screw Terminal , Screw Terminals |
| Depth | 3 1/4" |
| Height | 2.38" |
| Input Voltage | 120V AC |
| Ip Rating | Not Rated |
| Material | Plastic |
| Output Voltage | 16.5V AC |
| Style | Wall Mount |
| Temp. Rise | -0°C to +49°C , 0°C to +49°C |
| Tip Size | No Cord |
| Width | 2.63" |
| Connection - Primary | Cord with Plug |
| Frequency | 50/60 Hz |
| Input Current | 0.5A |
| Mounting Location | Wall |
| Operating Temperature - Maximum | 120°F |
| Operating Temperature - Minimum | 32°F |
| Output Current | 3A |
| Overall Depth | 2.6" |
| Overall Height | 3 2/5" |
| Overall Width | 2.3" |
| Power Rating | 50 VA |
| Standards | UL LISTED |
| Temperature Rise | 49°C |
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 6.76 |
| HS code | 8504409510 |
| Country of Origin | CN |
| Model | Depth | Height | Input Voltage | Output Voltage | Va Rating | Width | Price | |
|---|---|---|---|---|---|---|---|---|
| TP1220 | 3.25" | 2.38" | 115 VAC | 12 VAC | 20 | 2.63" | €45.82 | |
| TP1620 | 3.25" | 2.38" | 120 VAC | 16.5 VAC | 20 | 2.63" | €45.82 | |
| TP1640 | 3.25" | 2.38" | 120 VAC | 16.5 VAC | 40 | 2.63" | €60.39 | |
| TP2420 | 3.25" | 2.38" | 120 VAC | 24 VAC | 20 | 2.63" | €45.82 | |
| TP2440 | 3.25" | 2.38" | 120 VAC | 24 VAC | 40 | 2.63" | €60.39 | |
| TP2450 | 3.4" | 2.3" | 120 VAC | 24 VAC | 50 | 2.6" | €64.73 |
