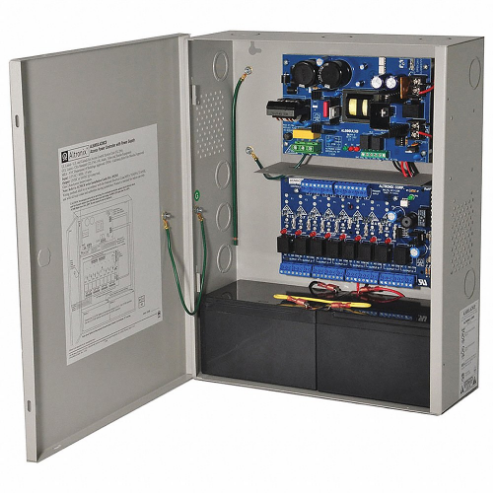

Altronix AL600ULACMCB access power controller with a power supply provides reliable and uninterrupted power to access control equipment, including card readers, electronic locks, and surveillance cameras. It ensures that these critical components remain operational, safeguarding premises and enhancing security. This power controller is used in commercial buildings, educational institutions, healthcare facilities and industrial complexes.
Features:
- It allows output activation through an open collector sink or normally open (NO) dry trigger input from various access control system components like card reader, keypad, pushbutton and PIR.
- This power controller can route power to Mag Locks, electric strikes and magnetic door holders.
- It offers the flexibility of operating in both Fail-Safe and Fail-Secure modes for enhanced security control.
- This unit allows individual selection of the fire alarm disconnect feature for any or all of its eight (8) outputs, offering precise control and customisation.
- It is equipped with the option for a single common power source (factory installed) to supply power for both board operation and locking devices or the alternative of two independent power sources, one for board operation and another for lock/accessory power.
- This FACP interface enables emergency egress, alarm monitoring and the triggering of auxiliary devices, serving diverse security needs.
Frequently Asked Questions:
Q. What maintenance is required for Altronix AL600ULACMCB access power controller?
A.
- Output Voltage Test: Examine the DC output voltage under standard load conditions to verify its adherence to the specified voltage levels.
- Battery Test: Confirm the battery's full charge status under normal load conditions and assess the specified voltage at both the battery terminals and the board terminals marked as [+ BAT ?], ensuring the absence of any interruptions in the battery connection wires.
Q. How to install this access power controller?
A.
- Mark and predrill holes in the wall, aligning them with the top two keyholes on the enclosure.
- Securely install two upper fasteners and screws into the wall, ensuring that the screw heads protrude.
- Position the enclosure's upper keyholes over the two upper screws, making sure it's level and then secure it in place.
- Mark the location for the lower two holes.
- Remove the enclosure and proceed to drill the lower holes.
- Install three fasteners into the newly drilled holes.
- Place the enclosure's upper keyholes over the two upper screws again.
- Install the two lower screws and be sure to tighten all screws securely.
Q. What is the operating temperature of Altronix AL600ULACMCB access power controller?
A. It has operating temperatures ranging from 0 to 49 degrees C.
