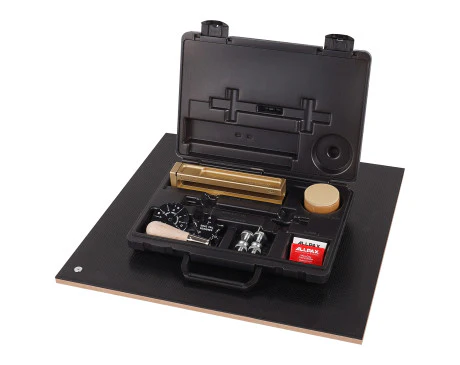

ALLPAX GASKET CUTTER SYSTEMS AX6150 Gasket Cutter Kit, Heavy Duty, No Cut Board, 6 to 1550 mm Cut Range, 19 mm Max. Thickness
Get it by Thursday, Jun 19
€361.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Metric Gasket Cutter Kit |
| Adjustment Mechanism | Sliding, Knurled Nut |
| Blade Type | Standard Duty, Heavy Duty |
| Block Material | Brass |
| Board Material | Plastic |
| Board Size | 457 mm x 457 mm |
| Case Type | Rugged |
| Cutting Blade Depth | 0 mm to 19 mm |
| Cutting Board | Yes |
| Cutting Board Features | Non Slip, Textured Surface, Self Heals After Each Use |
| Cutting Range | 6 mm to 1550 mm |
| Design | Ergnomic |
| Extended Bar Finish | Chrome Plated |
| Extended Bar Material | Steel |
| Gasket Cutter Type | Extension Style Kit |
| Handle Type | Center Pin Handle |
| Includes | AX1600-(6) Standard Duty Cutting Blades, AX1601-(6) Heavy-Duty Cutting Blades, AX3510-(1) 1 3/16" Short Center Pin, AX3511-(1) 1 7/16" Medium Center Pin, AX3512 (1) 1 11/16" Long Center Pin, AX3513-(1) Disc Pin, (1) Post With Offset Pin, (1) Pivot Post, (2) Knurled Nut For Pivot Post, AX1628-(1) Cutting Knob, (1) Cutter Block Assembly, (1) Storage, AX5502-(1) Bolt Hole Locator Template, AX5500-(1) Dove Tale Designer Template, AX3540-(1) Centre Pin Handle |
| Max. Work Thickness | 19 mm |
| Number Of Pieces | 35 |
| Outside Dia. | 0 mm to 1550 mm |
| System Of Measurement | Metric |
| Type | Heavy Duty |
| Body Material | Brass |
| Cutting Depth | 0.75" |
| Features | Plastic Non Slip, Textured Surface |
| Material | Brass, Chrome, Plastic, Steel |
| Maximum Cutting Diameter | 61" |
| Maximum Workpiece Thickness | 3/4" |
| Minimum Cutting Diameter | 1/4" |
| Overall Length | 18 1/2" |
| Ship weight (kg) | 5.71 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 46.99 |
| Country of Origin | US |
