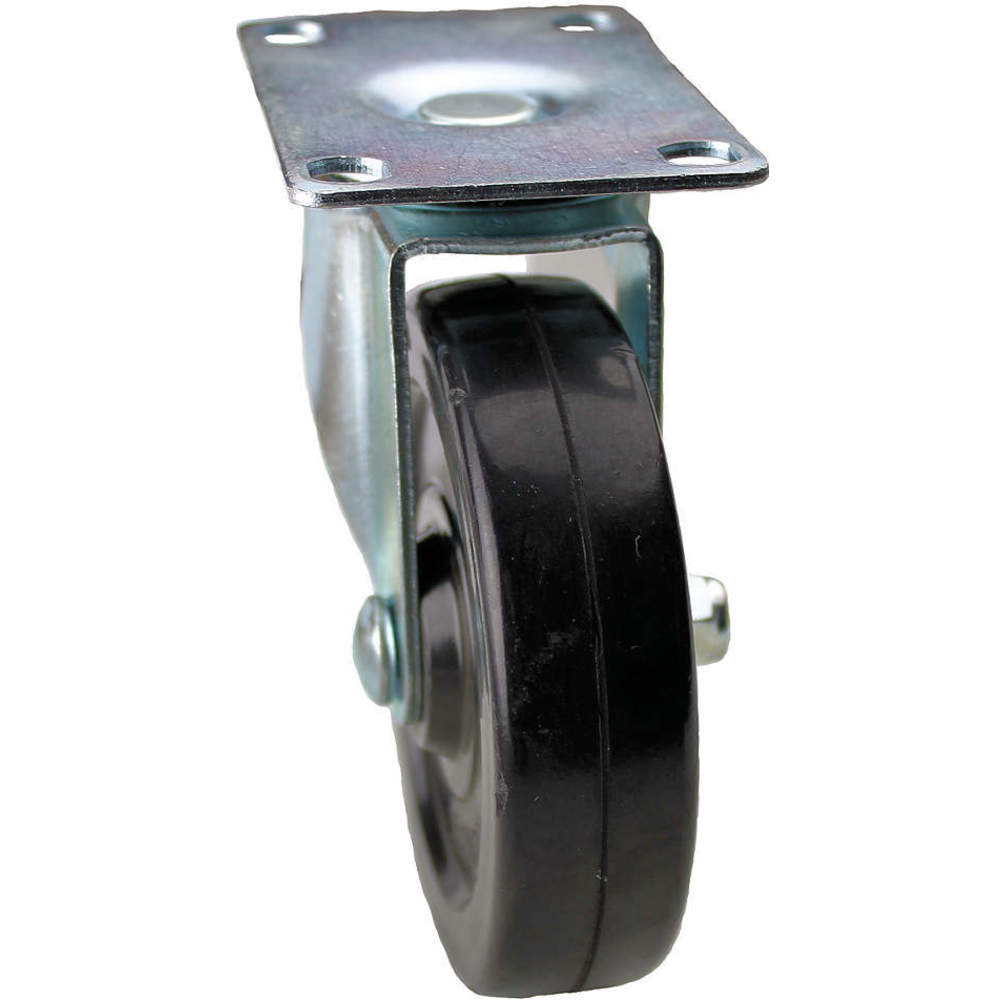

| Item | Swivel Plate Caster |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Rubber |
| Caster Product Group | Swivel Caster |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Rubber |
| Durometer | 75 Shore D |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | C |
| Inside Bolt Hole Spacing | 1 3/4" x 2 7/8" |
| Load Rating | 150 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 0.312" |
| Non-marking | No |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 1 3/4" x 3" |
| Overall Height | 3 5/8" |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 0.099" |
| Plate Type | C |
| Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Wheel Bearing Type | Plain Bore |
| Wheel Bearings | Plain Bore |
| Wheel Color | Black |
| Wheel Diameter | 3" |
| Wheel Material | Rubber |
| Wheel Width | 1" |
| Application | Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Includes Thread Guards | No |
| Mounting Height | 3 13/16" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" x 3 5/8" ( C ) |
| Number Of Mounting Holes | 4 |
| Replacement Wheel | RN03Z5205G |
| Standards | ICWM |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tread Shape | Standard |
| Wheel Core Material | Rubber |
| Wheel Dia. | 3" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 80 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 5.59 |
| HS code | 8302200000 |
| Country of Origin | US |
| Product | Model | Brake Type | Caster Brake Included | Caster Load Rating Range | Caster Product Group | Caster Wheel Material | Core Color | Core Material | Durometer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20PB03201SG | - | No | 300 to 999 lb. | Swivel Caster | Polypropylene | Black | Polypropylene | 65 Shore D | €18.60 | |
 |
04XA04051SPREVG | - | No | 300 to 999 lb. | Swivel Caster | Polyurethane | Tan | Polypropylene | 90 Shore A | €46.04 | |
|
04XA05051SPREVG | - | No | 300 to 999 lb. | Swivel Caster | Polyurethane | Tan | Polypropylene | 90 Shore A | €48.65 | |
 |
P2XR03028SG | - | No | 0 to 299 lb. | Swivel Caster | Thermoplastic Rubber | Gray | Polypropylene | 70 Shore A | €24.85 | |
|
P2XR03X28SG | - | No | 0 to 299 lb. | Swivel Caster | Thermoplastic Rubber | Gray | Polypropylene | 70 Shore A | €64.25 | |
|
P2XR05028SG | - | No | 0 to 299 lb. | Swivel Caster | Thermoplastic Rubber | Gray | Polypropylene | 70 Shore A | €36.40 | |
 |
05XS04251SPREVG | - | No | 300 to 999 lb. | Swivel Caster | Thermoplastic Rubber | Gray | Polypropylene | 70 Shore A | €178.67 |
