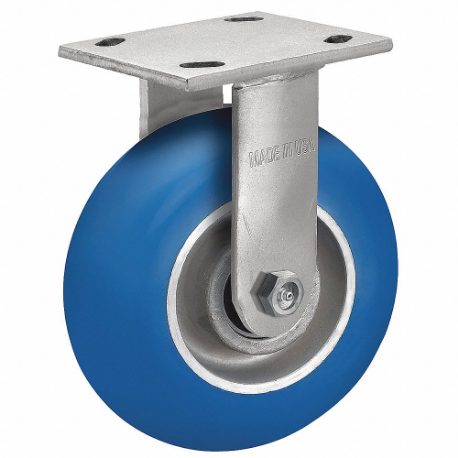

ALBION CASTERS 16NP06228R Standard Plate Caster, 6 Inch Dia, 7 1/4 Inch Height, Rigid
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Plate Caster |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid |
| Core Color | Blue |
| Frame Color | Silver |
| Frame Finish | Zinc |
| Hub Length | 2 7/16" |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 700 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/4" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temperature Range | -20°F to +220°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Swivel Raceway Type | Precision Ball |
| Tread Shape | Standard |
| Wheel Bearing Material | Precision |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 60-70 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Neoprene |
| Ship weight (kg) | 2.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
