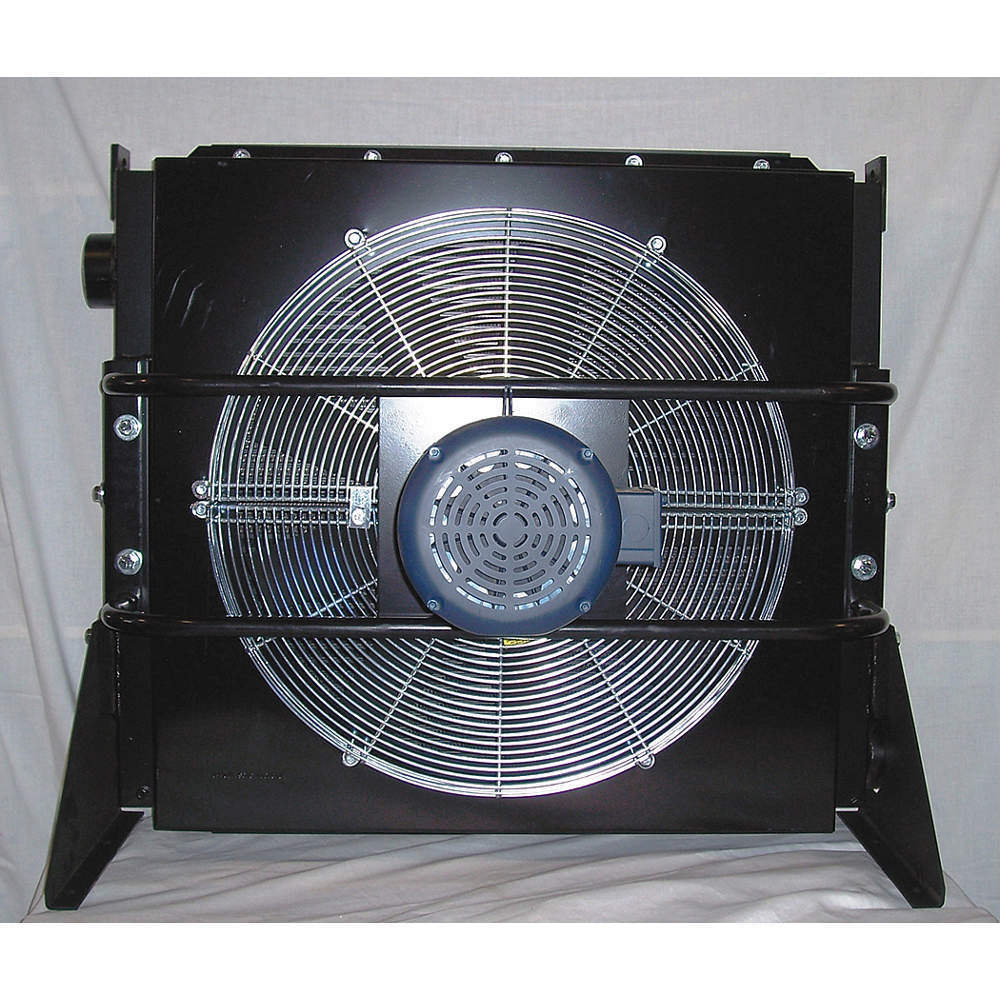

AKG CC2000-3 Air Aftercooler Max Hp 500 3016 Cfm
Get it by Tuesday, Jun 17
€9,915.07 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Air Cooled Aftercooler |
| Depth | 29 21/25" |
| Height | 37 11/25" |
| Max. Amps | 19.6/9.8A |
| Max. Flow Cfm @ 100 Psi | 3016 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 350°F |
| Min. Pressure | 60 psi |
| Tube Material | Aluminum |
| Voltage | 230/460V |
| Width | 42.91" |
| Air Inlet Size | 4" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 4" |
| Construction | Aluminum |
| Cooling Method | Air |
| Current Rating | 19.6A |
| Features | Reduced Air Slide Fouling |
| Fin Material | Aluminum |
| For Use With | Rotary Air Compressor |
| Frequency | 60 Hz |
| Includes | Mounting Legs |
| Junction Box Design | Single Point Electrical |
| Maximum Air Flow | 3016 CFM |
| Maximum Compressor Output Power | 400 hp |
| Maximum Fan Horsepower | 7 1/2 hp |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Pressure | 60 psi |
| Overall Depth | 29 13/16" |
| Overall Height | 37 7/16" |
| Overall Width | 42 7/8" |
| Phase | Three |
| Shell Material | Steel |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 171 |
| Ship height (cm) | 95.09 |
| Ship length (cm) | 75.72 |
| Ship width (cm) | 108.9 |
| HS code | 8419505000 |
| Country of Origin | US |
| Product | Model | Depth | Height | Max. Amps | Width | Price | |
|---|---|---|---|---|---|---|---|
 |
CC1000-3 | 22.6" | 27.72" | 6.2/3.1 | 37" | €10,402.20 |
