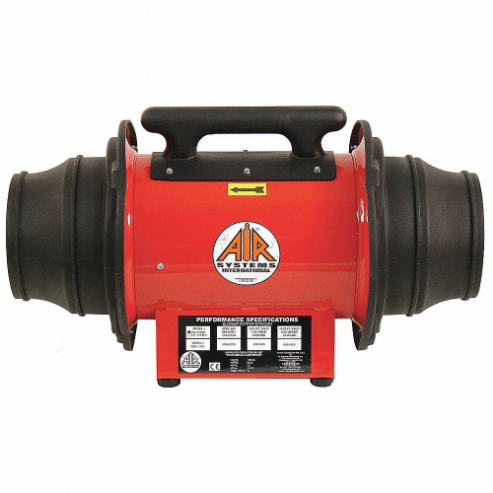

AIR SYSTEMS INTERNATIONAL SVF-10E Axial Fan, 10 Inch Size, 3.6A, 1/3 hp, 115V AC, Steel
Get it by Tuesday, Jun 17
€567.79 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Axial Fan |
| Color | Red |
| Cord Length | 10 ft. |
| Duct Dia. | 8", 10" |
| Duty Cycle | Continuous |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Height | 16 3/4" |
| Hp | 1/3 hp |
| Includes | In-Line Fan |
| Length | 16" |
| Material | Steel |
| Max. Flow In Free Air | 1390 CFM |
| Phase | 1 |
| Sound Level | 72 dBA @ 3 ft. |
| Type | Axial |
| Width | 12 1/2" |
| Blower/fan Speed | 3450 RPM |
| Current | 3.6A |
| Duct Diameter | 8", 10" |
| Horsepower | 1/3 hp |
| Maximum Flow In Free Air | 868 CFM |
| Operating Voltage | 115V AC |
| Standards | CE REGISTERED, CSA C/US CERTIFIED |
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 38.1 |
| HS code | 8414596590 |
| Country of Origin | US |
| Model | Amps | Duct Dia. | Hp | Max. Flow In Free Air | Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|
| SVF-10EXP | 3.5A | 8" or 10" | 1/3 hp | 1390 CFM | Axial Explosion Proof | 115V AC | €1,813.16 | |
| SVF-10AC50 | 3A | 8" or 10" | 1/3 hp | 925 CFM | Axial | 220V AC | €567.79 | |
| SVF-10X220 | 1.1/ 2.2A | 10" | 1/4 hp, 1/3 hp | - | Axial Explosion Proof | 220V AC | €1,813.16 |
