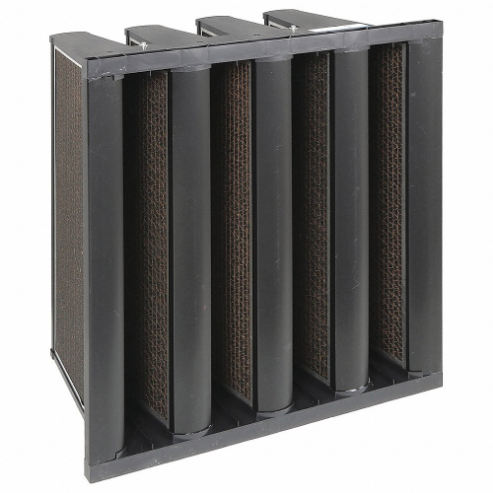

| Item | V-Bank Air Filter |
| Air Flow Rate | 500 FPM |
| Filter Pack Enclosure | Plastic Frame |
| Final Resistance | 1.5 in. wc |
| Initial Resistance | 0.6 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 180°F |
| Nominal Depth | 12" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1138 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Carbon Concentration | 0.49 g/mL |
| Ccl4 Activity | 60% |
| Common Applications | General Use |
| Filters Out | Exhaust Fumes |
| Frame Or Header Material | Plastic |
| Fully Incinerable | No |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance @ 300 Fpm | 0.30 in. wc |
| Initial Resistance @ 500 Fpm | 0.50 in. wc |
| Max. Velocity | 500 FPM |
| Media Color | Black |
| Media Material | Active Carbon |
| Nominal Filter Size | 24" x 24" x 12" |
| Number Of Vs | 4 |
| Recommended Final Resistance | 1.5 in. wc |
| Standards | ASTM D-3471 |
| Style - Air Filters | Box |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 60.96 |
| HS code | 8421398090 |
| Country of Origin | US |
